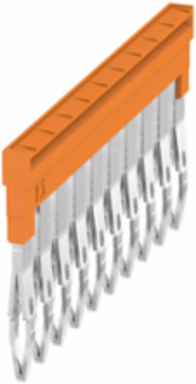

Weidmuller 1527690000 ZQV 2.5N/10
- MPN: 1527690000
- PPN: WDM-1527690000
CAD
$7.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ZQV 2.5N/10
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 48.7 mm |
|---|---|
| Height | 24.7 mm |
| Depth | 2.8 mm |
| Net weight | 5.85 g |
| Width (inches) | 1.917 inch |
|---|---|
| Height (inches) | 0.972 inch |
| Depth (inches) | 0.11 inch |
Dimensions
| Pitch in mm (P) | 5.1 mm |
|---|
Additional Technical Data
| Explosion-tested version | Yes |
|---|---|
| Type of mounting | Direct mounting |
| Type of fixing | Plugged |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | orange |
|---|
Classifications
| ETIM 6.0 | EC000489 |
|---|---|
| eClass 9.0 | 27-14-11-40 |
| eClass 10.0 | 27-14-11-40 |
| ETIM 7.0 | EC000489 |
|---|---|
| eClass 9.1 | 27-14-11-40 |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
Rating Data
| Rated current | 24 A |
|---|
