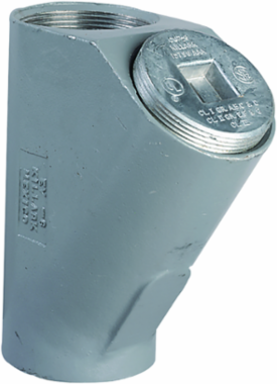

Killark EY-5 1-1/2 Inch Aluminum EY Seal Fitting Female/Female, Class I, Hazardous Location
Killark EY-5 1-1/2 Inch Aluminum EY Seal Fitting Female/Female, Class I, Hazardous Location
- MPN: EY-5
- UPC: 783936110059
- PPN: HBL-EY-5
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$145.52/ EA
Description
1-1/2" EY Seal Fitting Aluminum, Female/Female
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EY-T style supplied with removable close nipples
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Specifications
Specifications
- Finish
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- MX
- Each - Width
- 7.630 in
- Height
- 5.5 in
- Length
- 15.88 in
- Application
- Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
- Type
- Sealing Fitting
- Description - Invoice
- SEAL FTG AL 1-1/2" FEMAL/FEMAL
- Harmonization Code
- 7609000299
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 1.2
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
ColorGray
Dimensions15.88 in x 7.63 in x 5.5 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size1-1/2"
Width7.63 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesEY Series
BOX SIZE5.250x15.000x7.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936110059
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
