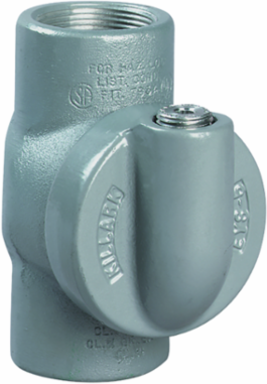

Killark EYS-5 1-1/2 Inch EYS Seal Fitting, Aluminum, Female/Female, Copper-Free

1-1/2 Inch EYS Seal Fitting, Aluminum, Female/Female, Copper-Free
  • MPN: EYS-5
  • UPC: 783936110158
  • PPN: HBL-EYS-5
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$119.88/ EA

Description

1½" EYS Seal Fitting Aluminum, Female/Female

Features

  • Large opening for easy packing of fiber and pouring of compound
  • Integral bushings in conduit hubs to protect conductor insulation from damage
  • NPT tapped hubs to ensure ground continuity
  • 25% conductor fill
  • EYS-T style supplied with removable close nipples
  • Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.

Specifications

Specifications

Finish
Powder Epoxy Paint
ARRA Compliant
Contact Manufacturer
Color
Gray
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size
1-1/2"
Width
7.63 in
Finish Type
Powder Epoxy Paint
Class Code
D30
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
Yes
CSA File Number
LR11716
UL File Number
E10514
Series
EYS Series
BOX SIZE
4.750x15.250x9.375 (in)
Carton - Number of Sub Packs
4
Carton - SCC-14 Next Lower Level Sub Pack
00783936110158
Master Pack Description
Each
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Country of OriginMexico
Dimensions15.88 in x 7.63 in x 5.5 in
Height5.5 in
Length15.88 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
TypeSealing Fitting
Description - InvoiceEYS SEAL FTG AL 1-1/2" FEMAL/FEMAL
Harmonization Code7609000299
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging1.51
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.040 lb.
Carton - Pack DescriptionCarton
Carton - Total Units4

Certifications

EU RoHS Indicator
Contact Manufacturer
