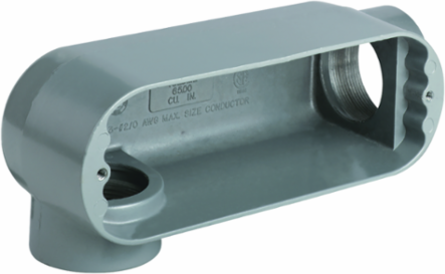

Killark OLR-5M 1-1/2 Inch LR Conduit Body, Malleable Iron, Raintight, 31 cu. in. Volume
- MPN: OLR-5M
- UPC: 783936480664
- PPN: HBL-OLR-5M
- UNSPSC: 39131708
CAD
$185.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1-1/2" LR Hub, Iron O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 31 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Hub Size
- 1-1/2"
- Special Features
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 31 cu. in.
- Width
- 5 in
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- LR
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.300 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2 EA
- Pallet - GTIN - Package
- 50783936480669
- Pallet Weight
- 0.000 lb.
Dimensions10 in x 5 in x 4 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height4 in
Length10 in
TypeConduit Body
ARRA CompliantContact Manufacturer
Description - InvoiceDURALOY 1 1/2" LR COND BDY
Harmonization Code7307193060
Lead Time70 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging3.15
UL File NumberE3397
SeriesO Series
BOX SIZE4.750x10.250x5.875 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936480664
Master Pack DescriptionEach
Pallet - Total Units576 EA
NAICS Code3359323110
Certifications
- EU RoHS Indicator
- Contact Manufacturer
