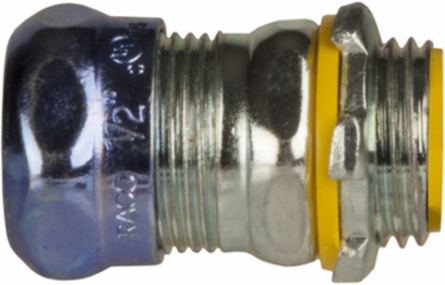

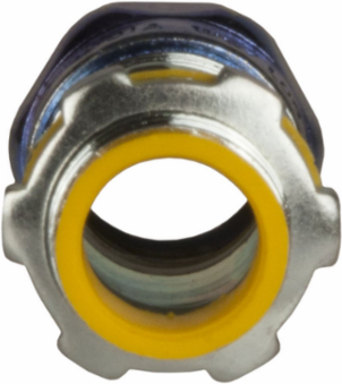

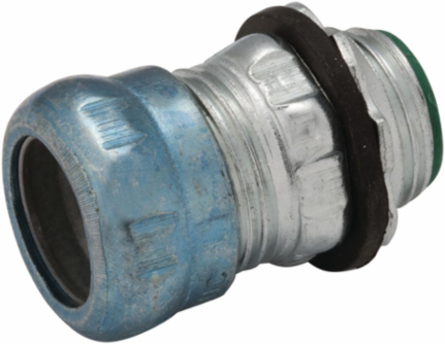

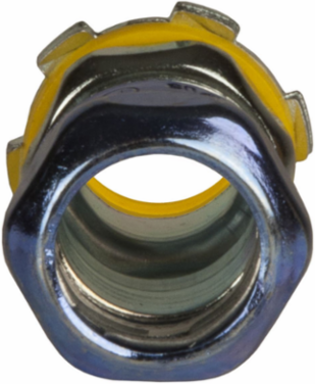

Hubbell CCSIRT125 1-1/4 in. EMT Raintight Compression Connector, Insulated
Hubbell CCSIRT125 1-1/4 in. EMT Raintight Compression Connector, Insulated
- MPN: CCSIRT125
- UPC: 626463044391
- PPN: HBL-CCSIRT125
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$3.73/ EA
Description
In wet locations, bond EMT conduit to a box or enclosure use tradeSELECT™ Raintight compression connectors. Offered in two styles, insulated or noninsulated. Designed to comply with current Raintight test requirements and with CEC rule 12-1424.
Features
- Steel construction ensures mechanical protection
- Zinc-electroplated for added corrosion protection
- Insulated
- Marked with "Wet Location" for easy inspection
- cUL
- Available in trade sizes of 1/2 in. through 4 in.
- Installed knockout seal
Specifications
Specifications
- Country of Origin
- CN
- Width
- 2 in
- Height
- 2.481 in
- Length
- 1.894 in
- Class Code
- T03
- Harmonization Code
- 8547900020
- Sub Class Code
- T03T030
- BOX SIZE
- 5.040x10.237x4.134 (in)
- Carton - Number of Sub Packs
- 20
- Carton - SCC-14 Next Lower Level Sub Pack
- 00626463044391
- Pallet - GTIN - Package
- 70626463044390
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
Dimensions1.894 in x 2 in x 2.481 in
Each - Width2 in
Industry Standard(s)UL 514B
Weight0.39 lb.
Freight Class Code06168002
Image Actual Or RepresentativeR
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.071 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20
Pallet Height47.126 in
Pallet Weight1167.000 lb.
Certifications
- cULus
- cUL Listed
Certified ListedcUL Listed
