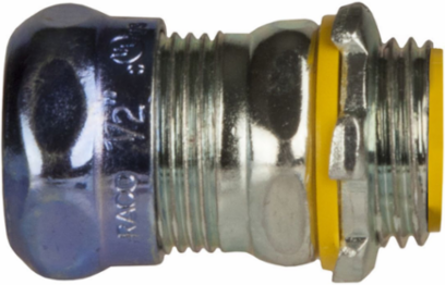

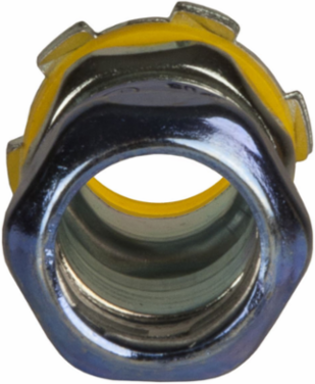

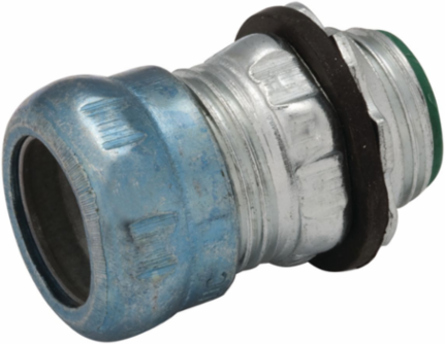

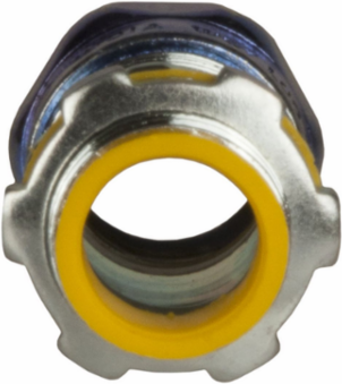

Hubbell CCSIRT050 1/2 in. EMT Raintight Compression Connector, Insulated
Hubbell CCSIRT050 1/2 in. EMT Raintight Compression Connector, Insulated
- MPN: CCSIRT050
- UPC: 626463044360
- PPN: HBL-CCSIRT050
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1.17/ EA
Description
In wet locations, bond EMT conduit to a box or enclosure use tradeSELECT™ Raintight compression connectors. Offered in two styles, insulated or noninsulated. Designed to comply with current Raintight test requirements and with CEC rule 12-1421.
Features
- Steel construction ensures mechanical protection
- Zinc-electroplated for added corrosion protection
- Insulated
- Marked with "Wet Location" for easy inspection
- cUL
- Available in trade sizes of 1/2 in. through 4 in.
- Installed knockout seal
Specifications
Specifications
- Country of Origin
- CN
- Width
- 1.122 in
- Height
- 1.791 in
- Length
- 1.004 in
- Class Code
- T03
- Harmonization Code
- 8547900020
- Sub Class Code
- T03T030
- BOX SIZE
- 6.615x20.079x6.142 (in)
- Carton - Number of Sub Packs
- 250
- Carton - SCC-14 Next Lower Level Sub Pack
- 00626463044360
- Pallet - GTIN - Package
- 70626463044369
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
Dimensions1.004 in x 1.122 in x 1.791 in
Each - Width1.122 in
Industry Standard(s)UL 514B
Weight0.12 lb.
Freight Class Code06168002
Image Actual Or RepresentativeR
Base Unit of MeasureEA
Carton - Gross Weight per Pack30.492 lb.
Carton - Pack DescriptionCarton
Carton - Total Units250
Pallet Height48.859 in
Pallet Weight1827.000 lb.
Certifications
- cULus
- cUL Listed
Certified ListedcUL Listed
