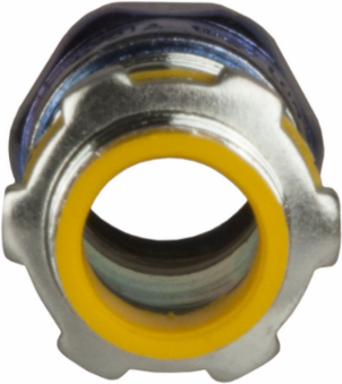

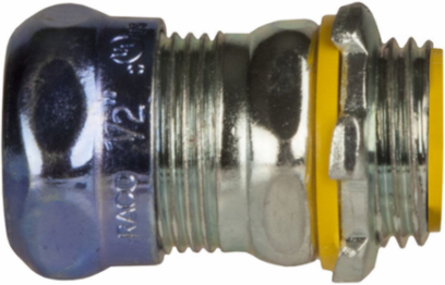

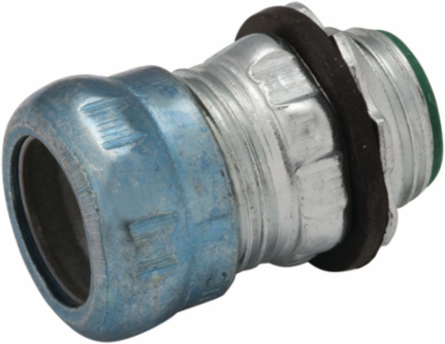

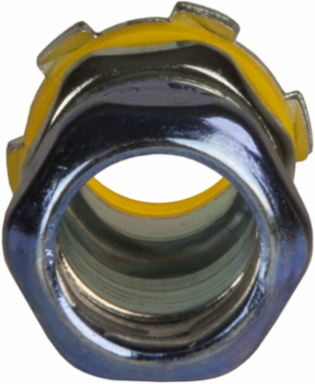

Hubbell CCSIRT100 1 in. EMT Raintight Compression Connector, Insulated
- MPN: CCSIRT100
- UPC: 626463044384
- PPN: HBL-CCSIRT100
CAD
$2.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
In wet locations, bond EMT conduit to a box or enclosure use tradeSELECT™ Raintight compression connectors. Offered in two styles, insulated or noninsulated. Designed to comply with current Raintight test requirements and with CEC rule 12-1423.
Features
- Steel construction ensures mechanical protection
- Zinc-electroplated for added corrosion protection
- Insulated
- Marked with "Wet Location" for easy inspection
- cUL
- Available in trade sizes of 1/2 in. through 4 in.
- Installed knockout seal
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- CN
- Width
- 1.638 in
- Height
- 2.067 in
- Length
- 1.516 in
- Class Code
- T03
- Harmonization Code
- 8547900030
- Sub Class Code
- T03T030
- BOX SIZE
- 5.906x23.032x5.237 (in)
- Carton - Number of Sub Packs
- 75
- Carton - SCC-14 Next Lower Level Sub Pack
- 00626463044384
- Pallet - GTIN - Package
- 70626463044383
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
Dimensions1.516 in x 1.638 in x 2.067 in
Each - Width1.638 in
Industry Standard(s)UL 514B
Weight0.24 lb.
Freight Class Code06168002
Image Actual Or RepresentativeR
Base Unit of MeasureEA
Carton - Gross Weight per Pack19.262 lb.
Carton - Pack DescriptionCarton
Carton - Total Units75
Pallet Height44.607 in
Pallet Weight1198.000 lb.
Certifications
- cULus
- cUL Listed
Certified ListedcUL Listed
