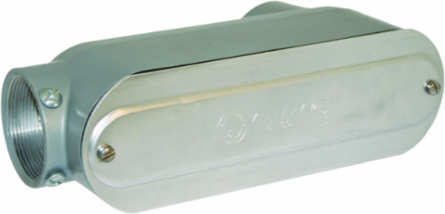

Killark COLB-4CG 1-1/4 Inch LB Hub Aluminum Combo Conduit Body, 3 Inch Width, 4 Inch Height, Powder Epoxy Paint
- MPN: COLB-4CG
- UPC: 783936067681
- PPN: HBL-COLB-4CG
- UNSPSC: 39131708
CAD
$203.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1-1/4" LB Hub, Aluminum Combo Conduit Body
Features
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 28.8 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit.
- Finish
- Powder Epoxy Paint
- Hub Size
- 1-1/4"
- Special Features
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 28.8 cu. in.
- Width
- 3 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- LB
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.820 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2 EA
- NAICS Code
- 3359323110
Dimensions8 in x 3 in x 4 in
ColorGray
Height4 in
Length8 in
TypeConduit Body With Cover & Gasket
Cover TypeStamped
ARRA CompliantContact Manufacturer
Description - InvoiceCOMBO LB CONUDIT BODY AL,CVR,GASK 1 1/4"
Harmonization Code7609000000
Lead Time49 wk
Order Multiple2 EA
Sub Class CodeD30D231
Gross Weight with Packaging1.41
UL File NumberE3397
SeriesCO Series
BOX SIZE5.000x9.250x6.500 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936067681
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
