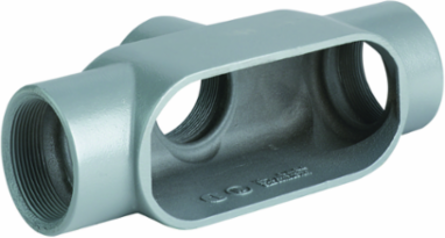

Killark TB47SA 1-1/4 Inch Aluminum Form 7 Conduit Body, Powder Epoxy Paint Finish
Killark TB47SA 1-1/4 Inch Aluminum Form 7 Conduit Body, Powder Epoxy Paint Finish
- MPN: TB47SA
- UPC: 783936080734
- PPN: HBL-TB47SA
- UNSPSC: 39131708
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$174.17/ EA
Description
1-1/4" TB Hub, Aluminum Duraloy 7 Conduit Body,
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 4 in
- Length
- 8 in
- Type
- Conduit Body
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- TB
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
- Pallet - Total Units
- 1210 EA
- Pallet Length
- 8.000 in
- Pallet Width
- 4.000 in
Dimensions8 in x 4 in x 4 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FinishPowder Epoxy Paint
Hub Size1-1/4"
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Width4 in
ARRA CompliantContact Manufacturer
Description - InvoiceCORROSAFE7 1-1/4" TB COND BDY
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging1.2
UL File NumberE3397
SeriesDuraloy 7 Series
Carton - SCC-14 Next Lower Level Sub Pack00783936080734
Pallet - GTIN - Package50783936080739
Pallet Height4.000 in
Pallet Weight1.200 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
