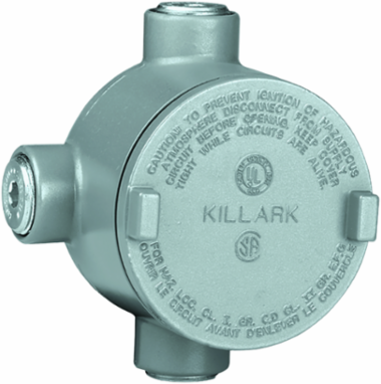

Killark GRR-1 1/2 Inch Aluminum Outlet Body with Blank Cover, 6.375 x 6 x 4.25 Inch, Hazardous Rated
- MPN: GRR-1
- UPC: 783936230078
- PPN: HBL-GRR-1
- UNSPSC: 39121314
CAD
$128.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1/2" Aluminum GRR Outlet Body, W/ Blank AL Cover
Features
- Cast conduit hubs with integral bushings
- Blank cover included
- Replacement cover catalog number GRRBC
- Compact size
- Supplied with five hubs and three close-up plugs
- Cast conduit hubs with integral bushings. Blank cover included. Compact size. Supplied with five hubs and three close-up plugs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 1/2"
- Color
- Gray
- Size
- 6.375 in x 6 in x 4.25 in
- Type
- Outlet Body With Cover
- Cover Type
- Blank
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2" GRR W/BLANK COVER
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 1.57
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936230078
- NAICS Code
- 3359326103
Dimensions6.375 in x 6 in x 4.25 in
Height4.25 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length6.375 in
Special FeaturesCast conduit hubs with integral bushings. Blank cover included. Compact size. Supplied with five hubs and three close-up plugs.
Width6 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesGR Outlet Bodies Series
BOX SIZE(in)
Master Pack DescriptionEach
