Killark

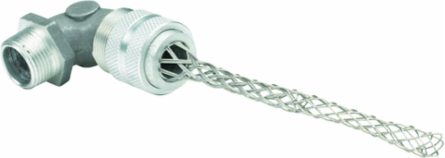

Killark ZN105-MG 1/2 Inch Aluminum 90° Cord Connector with Mesh Grip, Cord Range .250-.375

1/2 Inch Aluminum 90° Cord Connector with Mesh Grip, Cord Range .250-.375
  • MPN: ZN105-MG
  • UPC: 783936980324
  • PPN: HBL-ZN105-MG
  • UNSPSC: 39121431

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$296.82/ EA

Description

1/2" Cord Connector, Aluminum 90° w/ Mesh Grip, Cord Range .250-.375, White

Features

  • Aluminum fittings are strong, durable and corrosion resistant
  • Internal grommet provides liquidtight seal
  • Stainless steel mesh grips resist corrosion, prevent cord pull-out and control arc-of-bend
  • Aluminum fittings are strong, durable, and corrosion resistant. Internal grommet provides liquidtight seal. Stainless steel mesh grips resist corrosion, prevent cord pull-out, and control arc-of-bend.

Specifications

Specifications

Country of Origin
United States
Height
2.3 in
Length
1.56 in
Color
Silver
Special Features
Aluminum fittings are strong, durable, and corrosion resistant. Internal grommet provides liquidtight seal. Stainless steel mesh grips resist corrosion, prevent cord pull-out, and control arc-of-bend.
Width
0.5 in
Class Code
D30
Freight Class Code
06168002
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
Yes
Cable Range
.250 - .375 in
Gross Weight with Packaging
0.5
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Base Unit of Measure
EA
Carton - Gross Weight per Pack
5.000 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Dimensions1.56 in x 0.5 in x 2.3 in
Hub Size1/2"
ApplicationZ Series cord connector grips combine aluminum cord connectors with stainless steel mesh grips to provide superior cord pull-out prevention in indoor and outdoor applications. These grips provide enclosure terminations where cords are subjected to moistur
Size1.56 in x 0.5 in x 2.3 in
Type90º Cord Connector With Mesh Grip
ARRA CompliantContact Manufacturer
Description - InvoiceCONN, 90DEG 1/2" .250-.375 MG
Harmonization Code7616995190
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD30D234
CSA File NumberLR73478
UL File NumberE22698
SeriesZ Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783936980324
Master Pack DescriptionEach

Certifications

EU RoHS Indicator
Contact Manufacturer

Downloads
