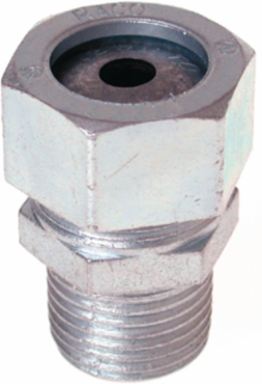

Raco 3702-2 1/2 Inch Liquidtight Strain Relief Cord Connector, Cable Range 0.250 - 0.375 Inch
- MPN: 3702-2
- UPC: 050169370223
- PPN: HBL-3702-2
- UNSPSC: 39121431
CAD
$15.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1/2 in. Hubs - Form 1 Liquidtight Strain Relief Cord Connector, Cable Range .250 - .375
Features
- All steel/malleable construction provides mechanical strength
- Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
- Washers have size range imprinted for identification - eliminates misidentifying inventory
- Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel
- All metallic components are zinc electroplated for corrosion protection
- UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
- 3/8 in. to 1 in. Steel, 1-1/4 in. to 1-1/2 in. Malleable Iron bodies and nuts
- Additional sizes available
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 1.453 in x 1.063 in x 1.063 in
- Height
- 1.063 in
- Product Type
- Commercial Fittings
- Size
- 1.453 in x 1.063 in x 1.063 in
- Width
- 1.063 in
- Connector Type
- Strain-Relief
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CORDGRIP CONN 1/2 IN (.250-.375) STEEL
- Harmonization Code
- 8546900000
- Lead Time
- 91 wk
- Order Multiple
- 25 EA
- Stock Indicator
- S - Shelf Stock
- Cable Range
- 0.250 - 0.375 in
- Form Size
- 1 in
- Material
- Steel/Malleable Iron
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.35 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Item Package Type
- Carton
- Pallet - GTIN - Package
- 70050169370222
- Pallet - Pack Description
- Pallet
- Pallet - Total Units
- 12000 EA
- Pallet Length
- 42.000 in
- Pallet Width
- 48.000 in
Description - SlangStrain Relief Cord Connector
Hazardous Rating(s)Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
Length1.453 in
Environmental ConditionsWet Location
Weight0.174 lb.
Accessory TypeFitting
Trade Size1/2 in
Class CodeD04
Freight Class Code06202000
Image Actual Or RepresentativeR
MSDS FlagYes
Returnable IndicatorYes
Sub Class CodeD047D0484
Fitting TypeConnectors
Conduit TypeLiquidtight
Proposition 65 Warning RequiredNo
BOX SIZE4.25x6.25x4.5 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack50169370223
Each - Pack DescriptionEach
Lowest Level UOMEach
Pallet - Number of Sub Packs480
Pallet - SCC-14 Next Lower Level Sub Pack50050169370228
Pallet Height38.375 in
Pallet Weight2133.000 lb.
NAICS Code3359323113
Certifications
- Buy American Compliant
- Contact Manufacturer
