Adaptaflex SP20/M20/A Conduit Fitting with Metric Threads

  • MPN: SP20/M20/A
  • UPC: 786210247779
  • PPN: T-B-SP20/M20/A

CAD

$17.27

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

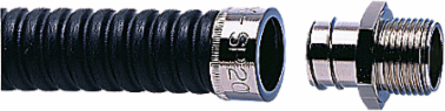

Nickel Plated Brass Straight Fitting with Fixed External Thread, Nominal Conduit Size 20 Millimeters, Metric Thread Size M20

Documentation & Downloads

Specifications

European Specifications (ETIM)

ETIM
EC001180 Screw connection for protective metallic hose
Degree of protection (IP) conduit dependant
IP54-IP54
Revolving thread
N
Connection type screw connection to housing
Thread
Thread connection size
M20 x 1.5
Material housing
Brass
Thread length
13mm
Total height
24mm
Approved in combination with protective conduit CSA
N
Approved in combination with protective conduit FI
N
Nominal diameter20mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length29mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULN
Operating temperature-50-+350°C

Packaging

Inner Quantity
10
Outer Quantity
300
Weight Uom
6.7 lbs. per 100
Inner Dimensions (inches)13.7x1.5x6.7
Outer Dimensions (inches)14x14x6

North American Specifications (UNSPSC)

UNSPSC
39121311 Electrical fittings
Brand Name
Adaptaflex
Application
For Insertion into Threaded Entries or Knockout to Connect Conduit
Material
Brass
Color
Metallic
Cable Entry
M20 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
Size1/2 Inch
FinishNickel Plated
ConnectionStraight
