Adaptaflex SPL16/M16/M Liquid Tight Non-Metallic Fitting

MPN: SPL16/M16/M
UPC: 786210245874
PPN: T-B-SPL16/M16/M

$27.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

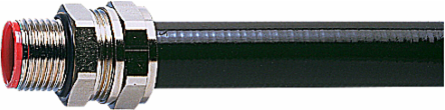

Nickel Plated Brass Liquid Tight Straight Swivel Fitting with External Thread, Nominal Conduit Size 16 Millimeters, Metric Thread Size 16M

Specifications

European Specifications (ETIM)

ETIM	EC001180 Screw connection for protective metallic hose
Degree of protection (IP) conduit dependant	IP66-IP69K
Revolving thread	Y
Connection type screw connection to housing	Thread
Thread connection size	M16 x 1.5
Material housing	Brass
Thread length	12mm
Total height	25.4mm
Approved in combination with protective conduit CSA	N
Approved in combination with protective conduit FI	N

Nominal diameter	16mm
Model	Straight
Construction type	External thread
Thread type	Metric
One-piece	N
Surface protection	Nickel-plated
Total length	33mm
Approved in combination with protective conduit DIN EN 61386-23	N
Approved in combination with protective conduit UL	Y
Operating temperature	-65-+150°C

North American Specifications (UNSPSC)

UNSPSC	39121311 Electrical fittings
Brand Name	Adaptaflex
Application	For Insertion into Threaded Entries or Knockout to Connect Conduit
Material	Brass
Color	Metallic
Cable Entry	M16 Thread
