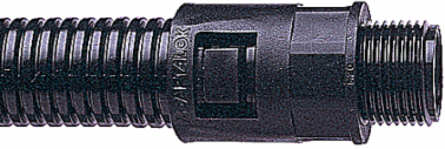

Adaptaflex AL21/050/A/BLYI Conduit Fitting with NPT Threads
- MPN: AL21/050/A/BLYI
- UPC: 786210279961
- PPN: T-B-AL21/050/A/BLYI
CAD
$4.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Conduit Fitting with Locknut and Sealing Washer, Fixed External Male Thread, Nominal Conduit Size 21mm, 1/2 Inch NPT Thread, With Locknut and Sealing Washer, Black
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Adaptaflex |
| Application | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Material | Polyamide/Nylon 6.6 |
| Connection | Straight |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Conduit Fitting with NPT Threads |
| Size | NC 21mm |
| Color | Black |
| Cable Entry | 1/2 Inch NPT Thread |
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP66 |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | Other |
| Colour | Black |
| Approved in combination with protective conduit DIN EN 61386-23 | Y |
| Nominal diameter | 21mm |
|---|---|
| Model | Straight |
| Construction type | External thread |
| Thread type | NPT |
| Material | Polyamide |
| Approved in combination with protective conduit UR | Y |
Packaging
| Inner Quantity | 10 |
|---|---|
| Outer Quantity | 150 |
| Weight Uom | 0.02 lbs. Each |
| Inner Dimensions (inches) | 1x1x1 |
|---|---|
| Outer Dimensions (inches) | 8x8x8 |
