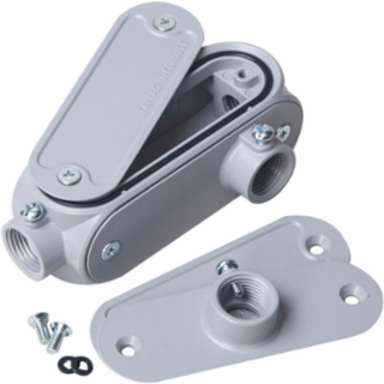

Taymac UCB050 1/2 Inch Universal Conduit Body, Lightweight Aluminum, NEMA 3R

1/2 Inch Universal Conduit Body, Lightweight Aluminum, NEMA 3R
1/2 Inch Universal Conduit Body, Lightweight Aluminum, NEMA 3R
  • MPN: UCB050
  • UPC: 050169571224
  • PPN: HBL-UCB050

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$13.71/ EA

Description

1/2 in. Universal Conduit Body

Features

  • Seamless pre-affixed gasket and self-aligning covers/panels
  • More wiring capacity than standard bodies and meets 2014 NEC 314.16(C)(2) for volume marking
  • Lightweight, durable TayMac® TUFF® die-cast aluminium construction
  • Tri-combo head set screws
  • Captive screws with attached O-ring for ease of use and weatherproof seal
  • Includes (1) body, (3) blank covers/panels, (1) T panel, (1) LL/LB/LR panel, (1) closure plug and extra hardware
  • Ideal for service trucks and reduces inventory
  • Not suitable for use in hazardous location applications

Specifications

Specifications

Country of Origin
China
Height
1.805 in
Standard Package
10
Width
5.102 in
Trade Size
1/2 in
ARRA Compliant
Contact Manufacturer
Description - Invoice
1/2 in. Universal Conduit Body
Harmonization Code
7609000000
Sub Class Code
D17D400
NEC
Compliant
Material
Aluminum
BOX SIZE
4.250x13.125x5.250 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
00050169571224
Pallet - GTIN - Package
70050169571223
Pallet - SCC-14 Next Lower Level Sub Pack
50050169571229
Pallet Height
48.000 in
Pallet Weight
1719.400 lb.

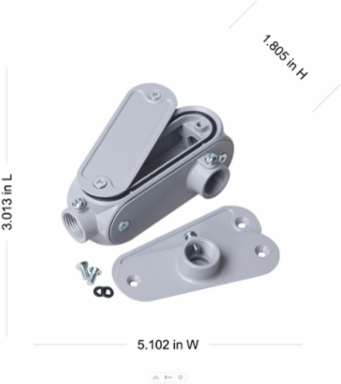

Dimensions3.013 in x 5.102 in x 1.805 in
Length3.013 in
Weight0.728 lb.
Nema RatingNEMA 3R
TypeUniversal Conduit Bodies
Class CodeD17
Freight Class Code06202000
Image Actual Or RepresentativeA
Fitting TypeConduit Bodies
Conduit TypeUniversal
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.28 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Pallet - Number of Sub Packs230
Pallet - Total Units2300 EA
Pallet Length43.307 in
Pallet Width43.307 in

Certifications
