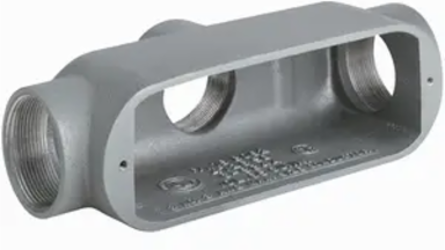

Killark OTB-3CG O/Duraloy 5 Conduit Body with Cover And Gasket- TB Type - Hub Size 1",12.0 cu in
- MPN: OTB-3CG
- UPC: 783936050942
- PPN: HBL-OTB-3CG
- UNSPSC: 39131708
CAD
$40.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
To provide access to conductors for pulling, splicing, and
maintenance. Threaded for rigid conduit and IMC
Features
- Designed with a spacious Type TB configuration, the Hubbell Canada OTB-3CG provides a generous 12.0 cubic inches of internal volume to easily accommodate the bending radii of heavy-gauge conductors.
- Featuring precision-machined, 1-inch tapered NPT threaded hubs, this conduit body ensures seamless, thread-to-thread engagement with standard rigid conduit or intermediate metal conduit (IMC).

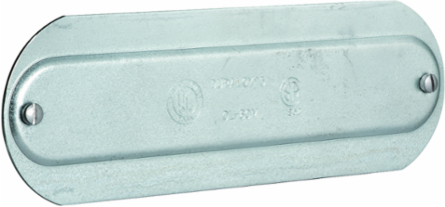

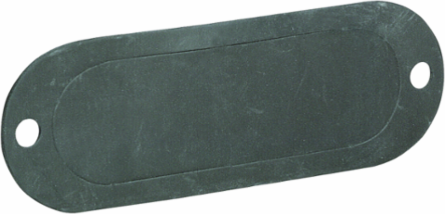

- Supplied complete with a matching stamped cover and protective sealing gasket, this assembly is engineered to establish an ultra-reliable, raintight seal when fully torqued down. The resilient barrier blocks out driving rain, splashing water, and airborne dust particles, making it an ideal choice for exposed outdoor walls, commercial rooftops, or damp processing environments.
- Built from copper-free aluminum (containing less than 4/10 of 1% copper) and finished with an electrostatically applied powder epoxy paint, the OTB-3CG provides superior resistance to rust and oxidation. Coupled with rust-resistant stainless steel cover screws, this rugged construction prevents environmental pitting and mechanical seizing, ensuring long-term structural integrity.
- This conduit body is CSA Certified, guaranteeing absolute compliance with strict commercial construction codes and facility safety guidelines. Its universal design provides full physical interchangeability with competitive Form 5 or Series 5 fittings, preventing inventory headaches and ensuring hassle-free installation on any industrial job site.
Documentation & Downloads
Specifications
Additional
- Hub Size
- 1 in
- Length
- 8 in
- Height
- 3 in
- Cover Type
- Stamped
- Hub Pattern
- TB
- Type
- Conduit Body with Cover & Gasket
Volume12 cu in
Width2 in
MaterialAluminum, Copper Free (<0.4%)
Finish TypePowder Epoxy Paint
SeriesO Series
