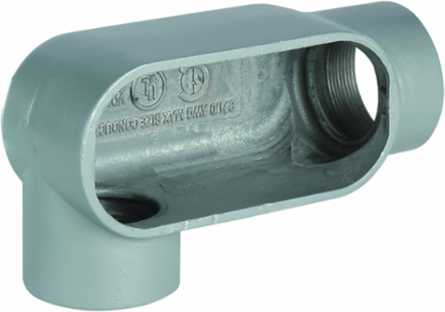

Killark LR17SA 1/2 Inch LR Hub Conduit Body, Aluminum, NEMA 3 Seal, Powder Epoxy Paint
Killark LR17SA 1/2 Inch LR Hub Conduit Body, Aluminum, NEMA 3 Seal, Powder Epoxy Paint
- MPN: LR17SA
- UPC: 783936080208
- PPN: HBL-LR17SA
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$30.29/ EA
Description
1/2" LR Hub, Aluminum Form 7 Conduit Body
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
Specifications
- Special Features
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
- Color
- Gray
- Dimensions
- 5 in x 3 in x 2 in
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Hub Size
- 1/2"
- Width
- 3 in
- Type
- Conduit Body
- Description - Invoice
- CORROSAFE7 1/2" LR COND BDY
- Harmonization Code
- 7609000299
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 0.33
- UL File Number
- E3397
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.650 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
ARRA CompliantContact Manufacturer
Country of OriginMX
Each - Width3.000 in
Height2 in
Length5 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLR
MaterialAluminum, Copper Free (less than 4/10 of 1%)
BOX SIZE4.125x11.875x7.375 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936080208
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
