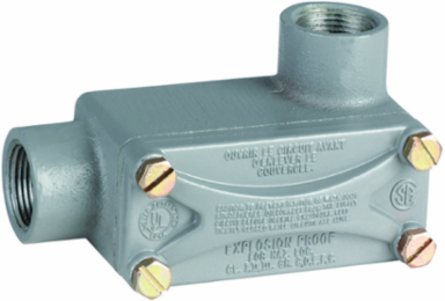

Killark XLR-1 Aluminum Conduit Body 1/2 Inch LR Type, 4.3 cu in Volume, Hazardous Location Rated
Killark XLR-1 Aluminum Conduit Body 1/2 Inch LR Type, 4.3 cu in Volume, Hazardous Location Rated
- MPN: XLR-1
- UPC: 783936910079
- PPN: HBL-XLR-1
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$135.89/ EA
Description
1/2" LR Type, Aluminum X Series Conduit Body
Features
- Rated for Harsh and Hazardous locations (see specifications for ratings)
- Integral bushings
- Easy access covers
- Integral bushings. Easy access covers. Volume is 4.3 cu. in.
Specifications
Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Hub Size
- 1/2"
- Special Features
- Integral bushings. Easy access covers. Volume is 4.3 cu. in.
- Width
- 3 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2" LR TYPE AL HAZ LOC FITTIN
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.74
- UL File Number
- E10514
- Series
- X Series
- BOX SIZE
- 4.250x7.750x5.750 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936910079
- Master Pack Description
- Each
Dimensions5 in x 3 in x 3 in
ApplicationFor use in hazardous locations.
Height3 in
Length5 in
TypeConduit Body
Engineering Drawing 1 Display TextXLR-1 Engineering Drawing
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternLR
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
