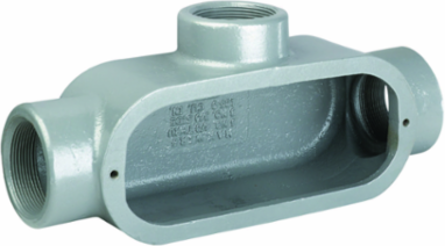

Killark T18 1/2 Inch T Hub Conduit Body, Iron, Raintight, 6 lb Gross Weight
- MPN: T18
- UPC: 783936481319
- PPN: HBL-T18
- UNSPSC: 39131708
CAD
$78.34
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1/2" T Hub, Iron Duraloy 8 Conduit Body
Features
- Completely interchangeable with competative bodies, gaskets, and covers.
- Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing.
- Raintight when used with gasketed covers.
- Stainless steel screws on stamped and cast covers.
- Smooth integral wire bushings.
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Color | Gray |
| Height | 2 in |
| Length | 6 in |
| Type | Conduit Body |
| Engineering Drawing 1 Display Text | T18 Engineering Drawing |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | COND BODY,T,GRAY IRON 1/2" |
| Harmonization Code | 7307110030 |
| Lead Time | 49 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D230 |
| CSA File Number | LR11852 |
| Hub Pattern | T |
| Material | Iron |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 6.750 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 |
| NAICS Code | 3359323110 |
| Dimensions | 6 in x 3 in x 2 in |
|---|---|
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Finish | Powder Epoxy Paint |
| Hub Size | 1/2" |
| Special Features | Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i |
| Width | 3 in |
| Finish Type | Powder Epoxy Paint |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 1.35 |
| UL File Number | E3397 |
| Series | Duraloy 8 Series |
| BOX SIZE | 4.250x7.500x5.875 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936481319 |
| Master Pack Description | Each |
