Documentation & Downloads

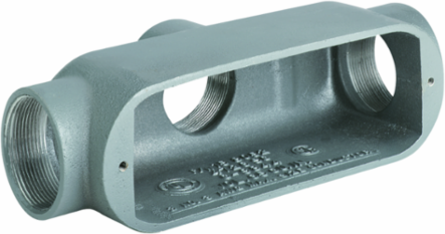

Killark OTB-1M 1/2 Inch Iron TB Hub Conduit Body, Raintight, Malleable Iron, 4 cu. in. Volume
- MPN: OTB-1M
- UPC: 783936480855
- PPN: HBL-OTB-1M
- UNSPSC: 39131708
CAD
$72.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1/2" TB Hub, Iron O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 4 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 3 in
- Length
- 6 in
- Type
- Conduit Body
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- TB
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.560 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
- NAICS Code
- 3359323110
Dimensions6 in x 2 in x 3 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FinishPowder Epoxy Paint
Hub Size1/2"
Special FeaturesTapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 4 cu. in.
Width2 in
ARRA CompliantContact Manufacturer
Description - Invoice1/2" IRON CONDUIT BODY TYPE TB
Harmonization Code7307193060
Lead Time70 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging0.86
UL File NumberE3397
SeriesO Series
BOX SIZE5.500x7.500x5.500 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936480855
Master Pack DescriptionEach
