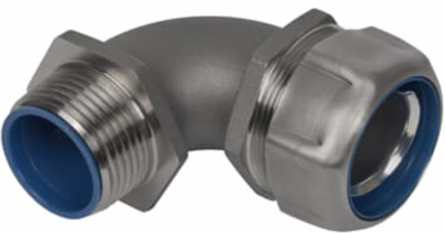

Thomas & Betts 5354SST6 1 Inch Liquidtight 90 Degree Fitting, 316 Stainless Steel, NEMA 3/4, UV Resistant

1 Inch Liquidtight 90 Degree Fitting, 316 Stainless Steel, NEMA 3/4, UV Resistant
  • MPN: 5354SST6
  • UPC: 786210080888
  • PPN: T-B-5354SST6
  • UNSPSC: 39121420

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$356.12/ EA

Description

1 Inch Liquidtight Fitting for Flexible Metallic Conduit, 90 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 3.32 Inches/84.33mm, Width 1.87 Inches/47.50mm, Height 2.95 Inches/74.93mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone

Features

  • Stronger and More UV-resistant than Nonmetallic Fittings

Specifications

Specifications

Country of Origin
Turkey
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
T&B Liquidtight Fittings
Standard
UL E23018, CSA
Finish
None
Color
Metallic
Insulation
Y
Declaration of Conformity - CE
9AKK107492A9904
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4585
ApplicationConnects Flexible Metallic Liquidtight Conduit to a Box or Enclosure
Size1 Inch
Material316 Stainless Steel with Duraplated Ground Cone
NEMA Rating3, 3R, 4, 4X
Temperature Rating105 C

Downloads
