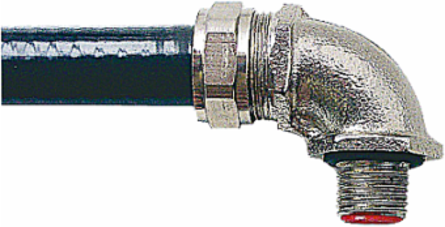

Adaptaflex SPL25/M25/C90 90 Degree Liquid Tight Non-Metallic Fitting, 25mm Size, Nickel-Plated Brass

MPN: SPL25/M25/C90
UPC: 786210246970
PPN: T-B-SPL25/M25/C90

$54.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

90 Degree Conduit Fitting with Fixed External Male Threads, Nominal Conduit Size 25 Millimeters, Thread Size M25, Nickel-Plated Brass

Specifications

European Specifications (ETIM)

ETIM	EC001180 Screw connection for protective metallic hose
Degree of protection (IP) conduit dependant	IP66-IP69K
Revolving thread	N
Connection type screw connection to housing	Thread
Thread connection size	M25 x 1.5
Material housing	Brass
Thread length	16.6mm
Approved in combination with protective conduit CSA	N
Approved in combination with protective conduit FI	N

Nominal diameter	25mm
Model	90°-elbow
Construction type	External thread
Thread type	Metric
One-piece	Y
Surface protection	Nickel-plated
Approved in combination with protective conduit DIN EN 61386-23	N
Approved in combination with protective conduit UL	Y
Operating temperature	-65-+150°C

Packaging

Outer Quantity	10
Weight Uom	0.53 lbs. Each

Outer Dimensions (inches)	1x1x1

North American Specifications (UNSPSC)

UNSPSC	39121311 Electrical fittings
Brand Name	Adaptaflex
Application	For Insertion into Threaded Entries or Knockout to Connect Conduit
Material	Brass
Color	Metallic
Cable Entry	M25 Thread
