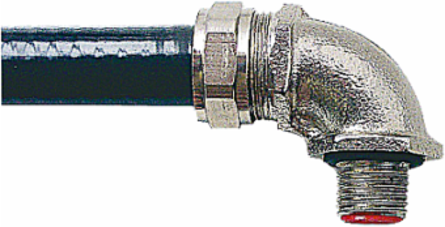

Adaptaflex SPL32/M32/C90 Liquid Tight Non-Metallic Fitting 90 Degree, M32 Thread, Brass, IP66-IP69K
- MPN: SPL32/M32/C90
- UPC: 786210247113
- PPN: T-B-SPL32/M32/C90
CAD
$158.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
90 Degree Conduit Fitting with Fixed External Male Threads, Nomical Conduit Size 32 Millimeters, Thread Size M32, Nickel-Plated Brass
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP66-IP69K
- Revolving thread
- N
- Connection type screw connection to housing
- Thread
- Thread connection size
- M32 x 1.5
- Material housing
- Brass
- Thread length
- 17.6mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter32mm
Model90°-elbow
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULY
Operating temperature-65-+150°C
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M32 Thread
IGCC4441 Electrical fittings
TypeLiquid Tight Non-Metallic Fitting
SizeNC 32mm
FinishNickel Plated
Connection90 Degree
Packaging
- Outer Quantity
- 2
- Weight Uom
- 0.65 lbs. Each
Outer Dimensions (inches)1x1x1
