Killark EY-100 1 Inch Vertical Seal Fitting Aluminum, Female/Female, Powder Coated
- MPN: EY-100
- UPC: 783936089911
- PPN: HBL-EY-100
- UNSPSC: 39131708
CAD
$43.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

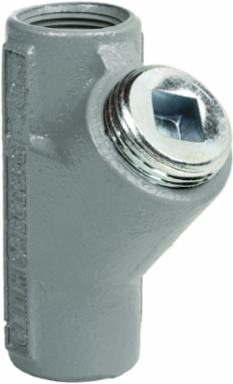

1" EY Vertical Seal Fitting Aluminum, Female/Female
Features
- Large opening for easy packing of fiber dam and pouring of compound.
- Integral bushings in conduit hubs to protect conductor insulation from damage.
- NPT tapped hubs to ensure ground continuity.
- Design provides minimum turning radius.
- 25% conductor fill.
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Finish
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 1"
- Width
- 10 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.68
- Series
- EY Series
- BOX SIZE
- 4.750x15.250x9.375 (in)
- Carton - Number of Sub Packs
- 410
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936089911
- Master Pack Description
- Each
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Country of OriginIndia
Dimensions5 in x 10 in x 0.1 in
Height0.1 in
Length5 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
TypeSealing Fitting
Description - InvoiceSEAL FTG AL 1" FEMAL/FEMAL
Harmonization Code7609000299
Lead Time49 wk
Order Multiple1 EA
Sub Class CodeD30D237
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.040 lb.
Carton - Pack DescriptionCarton
Carton - Total Units410 EA
NAICS Code3359323110
