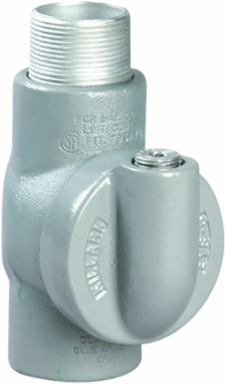

Killark EYS-3-T 1 Inch Aluminum EYS Seal Fitting with Nipple, Copper-Free, Powder Coated
- MPN: EYS-3-T
- UPC: 783936111032
- PPN: HBL-EYS-3-T
- UNSPSC: 39131708
CAD
$167.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1" EYS Seal Fitting Aluminum, w/nipple Male/Female
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EYS-T style supplied with removable close nipples
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Hub Size
- 1"
- Type
- Sealing Fitting With Nipple
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- EYS SEAL FTG AL 1" W/ NIPPLE
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.57
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.140 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2 EA
- NAICS Code
- 3359323114
Width1.750 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
FinishPowder Epoxy Paint
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesEYS Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936111032
Master Pack DescriptionEach
