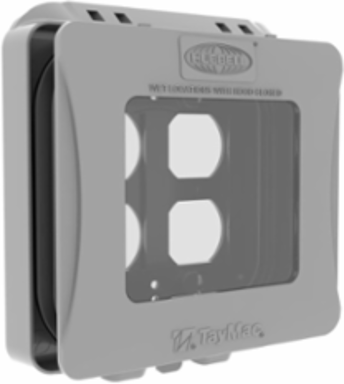

Taymac ML2450G 2-Gang Expandable Weatherproof In-Use Cover, Gray, 6.313x15.875x4.375 Inch
Taymac ML2450G 2-Gang Expandable Weatherproof In-Use Cover, Gray, 6.313x15.875x4.375 Inch
- MPN: ML2450G
- UPC: 050169917350
- PPN: HBL-ML2450G
- UNSPSC: 39121304
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$44.00/ EA
Description
2-Gang Weatherproof In-Use Cover, Expandable, Gray
Features
- Revolutionary patented design expands from 1 in. to 3 in. for In-Use needs
- Ultra-rugged polycarbonate & synthetic neoprene rubber that will not dry rot, crack or deteriorate in sunlight
- Quick-Fit keyhole mounting system allows installation in under a minute
- Universal Fit Adapter System Technology (U-Fast) for 55-in-1 custom device configurations, comes pre-configured for GFCI
- 100% paintable surface
- Clear window allows for quick/easy visual inspection
- Includes attached gasket and mounting hardware
- NEMA 3R compliant
- 2014 NEC 406.9(A) compliant
Specifications
Specifications
- ChannelSightWidgetId
- 705
- Depth
- 1.25 in
- Height
- 6.15 in
- Product Type
- Weatherproof
- Application
- In Use
- Cover Type
- Expandable;In-Use
- Shape
- Expandable
- Type
- Cover
- Configuration
- Multi-Configurable
- Nema Rating
- NEMA 3R
- Freight Class Code
- 06202000
- Image Actual Or Representative
- A
- NEC
- Compliant
- Material
- Polycarbonate
- Base Unit of Measure
- EA
- Box Type
- 2-Gang
- Carton - Number of Sub Packs
- 6
- Carton - SCC-14 Next Lower Level Sub Pack
- 00050169917350
- Item Package Type
- Shrink
- Package Length
- 1.22 in
- Package Width
- 5.77 in
- Pallet - Total Units
- 1134 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginMX
Each - Width5.770 in
Mounting MethodVertical
Standard Package6
ColorGray
Cubic Capacity48.046875 cu.in
StandardcULus Listed
Width6.25 in
Material typeNon-metallic
Class CodeD17
Harmonization Code3925900000
Sub Class CodeD17D180
ConstructionNonmetallic
Number of Gang(s)2-Gang
BOX SIZE6.313x15.875x4.375 (in)
Carton - Gross Weight per Pack4.763 lb.
Carton - Pack DescriptionCarton
Carton - Total Units6 EA
Package Height6.15 in
Package Weight0.794 lb.
Pallet - GTIN - Package70050169917359
Pallet Height49.688 in
Pallet Weight945.207 lb.
Certifications
- Certified Listed
- cULus Listed
