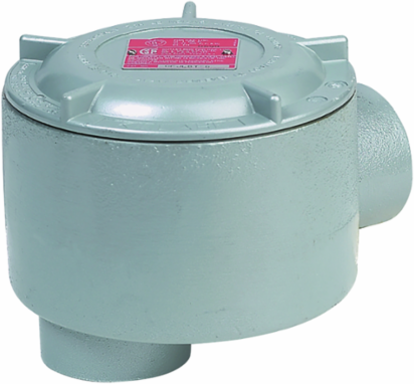

Killark GECLBT-3M 1 Inch GEC Outlet Body LB Type, Iron, 5.75 in x 5.75 in x 4.375 in, Weather-Resistant
Killark GECLBT-3M 1 Inch GEC Outlet Body LB Type, Iron, 5.75 in x 5.75 in x 4.375 in, Weather-Resistant
- MPN: GECLBT-3M
- UPC: 783936210834
- PPN: HBL-GECLBT-3M
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$243.98/ EA
Description
1" GEC Outlet Body LB Type, Iron
Features
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Specifications
Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA
- Hub Size
- 1"
- Color
- Gray
- Size
- 5.75 in x 5.75 in x 4.375 in
- Type
- Outlet Body With Cover
- Engineering Drawing 1 Display Text
- GECLBT-3M Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- OUTLET BODY 1" FE LB TYPE
- Harmonization Code
- 7307199060
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 3.76
- UL File Number
- E10514
- Series
- GE Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936210834
Dimensions5.75 in x 5.75 in x 4.375 in
Height4.375 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length5.75 in
Special FeaturesGE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Width5.75 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternLB
MaterialIron
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
