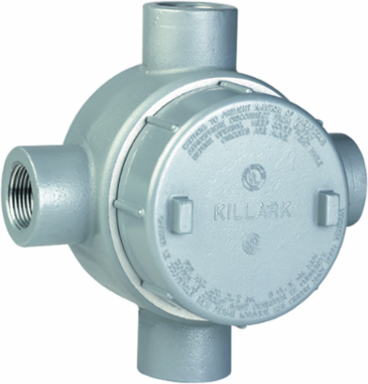

Killark GECXT-3M 1 Inch Iron Outlet Body X Type, Weather-Resistant, Hazardous Location
Killark GECXT-3M 1 Inch Iron Outlet Body X Type, Weather-Resistant, Hazardous Location
- MPN: GECXT-3M
- UPC: 783936211039
- PPN: HBL-GECXT-3M
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$182.54/ EA
Description
1" GEC Outlet Body X Type, Iron
Features
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Specifications
Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA
- Hub Size
- 1"
- Color
- Gray
- Size
- 6.375 in x 5.875 in x 4.25 in
- Type
- Outlet Body With Cover
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- Hub Pattern
- X
- Material
- Iron
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions6.375 in x 5.875 in x 4.25 in
Height4.25 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length6.375 in
Special FeaturesGE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Width5.875 in
ARRA CompliantContact Manufacturer
Description - Invoice1 IN IRON OUTLET BODY X TYPE 2-
Harmonization Code7307199060
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging4.05
UL File NumberE10514
SeriesGE Series
Carton - SCC-14 Next Lower Level Sub Pack00783936211039
Certifications
- EU RoHS Indicator
- Contact Manufacturer
