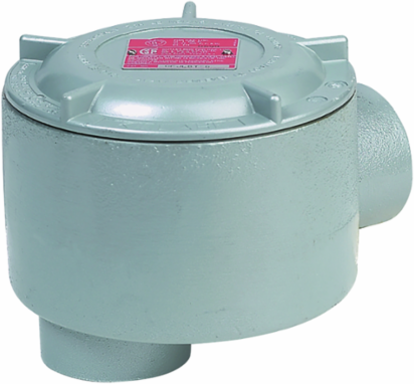

Killark GESLBT-3 1 Inch Aluminum Outlet Body LB Type, Wet Location Rated, Size 6.63 x 6 x 4.38 Inch
- MPN: GESLBT-3
- UPC: 783936211466
- PPN: HBL-GESLBT-3
- UNSPSC: 39121314
CAD
$306.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1" GES Outlet Body LB Type, Aluminum
Features
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GES Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA
- Hub Size
- 1"
- Color
- Gray
- Size
- 6.63 in x 6 in x 4.38 in
- Type
- Outlet Body With Cover
- Engineering Drawing 1 Display Text
- GESLBT-3 Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1" ALUM OUTLET BODY LB TYPE 3-
- Harmonization Code
- 7609000000
- Lead Time
- 49 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 3.26
- UL File Number
- E10514
- Series
- GE Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions6.63 in x 6 in x 4.38 in
Height4.38 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length6.63 in
Special FeaturesGE conduit outlet boxes have: GES Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Width6 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternLB
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936211466
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
