Burndy

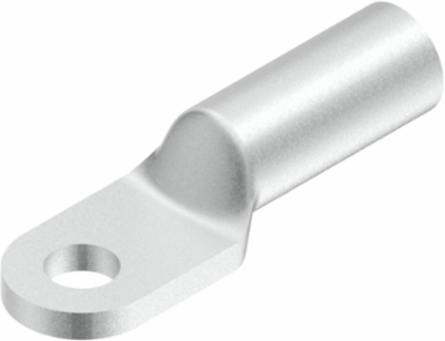

Burndy YAGB28LTC516FXOEM HYLUGTM Cu Battery Terminal, 4/0 AWG, 5/16 Inch Stud, 2.56 Inch Length

  • MPN: YAGB28LTC516FXOEM
  • UPC: 781810531099
  • PPN: BUR-30008156

CAD

$38.02

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

1 Hole HYLUG™ Cu Battery Terminal, 4/0 AWG, 5/16" stud, 2.56" L, 1.10" W, Yellow

Documentation & Downloads

Specifications

Dimensions

Dimension - Length Overall inch2.56 in
Dimension - Strip Length inch1-3/16 in
Dimension - Pad Width inch1.1 in
Dimension - Stud Size inch5/16 in

Certifications and Compliance

Certification - CSA ApprovedNo
Certification - UL RecognizedNo
Standards - RoHS Compliance StatusCM
UL ListedNo
Certification - ETLNo
Certification - cULusNo
Standards - RoHS CompliantYes

Conductor Related

Conductor - Copper Str Size4/0 AWG
Conductor TypeCU C Str-Size

General

ApplicationPower Connector
Physical Attribute - Number of Holes1
Temperature Rating194
TypeOEM Terminals
UPC 12 Digit7818105310999
Connector TypeTerminal
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810531099

Electrical Ratings

Rating - KVA35 kV
Voltage - Maximum35000
Rating - Minimum Voltage600
HYLUGTM Cu Battery Terminal, 4/0 AWG, 5/16 Inch Stud, 2.56 Inch Length
