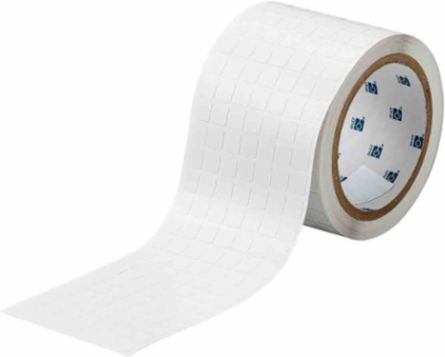

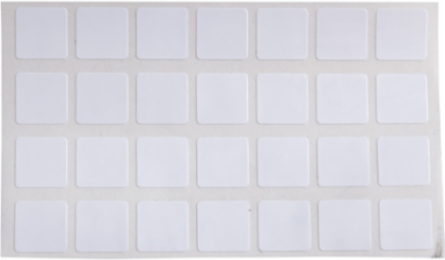

Brady THT-38-719-10 Polyimide Labels, 0.375 Inch H x 0.375 Inch W, Roll of 10000, Static Dissipative
- MPN: THT-38-719-10
- UPC: 754473924898
- PPN: BRD-THT-38-719-10
- UNSPSC: 55121612
CAD
$699.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

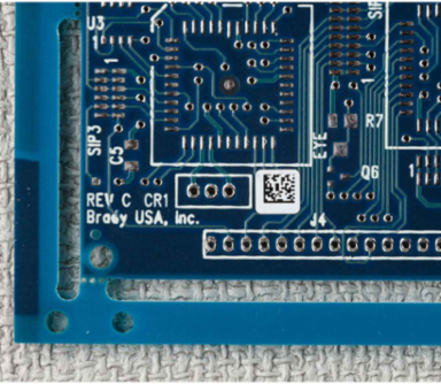

Static Dissipative Polyimide (B-719) withstands wave solder environments and multiple harsh washes for printed circuit board and electronic component preprocess labeling.
Features
- Low profile, high temperature, matte white polyimide material features a static dissipative adhesive and static dissipative release liner
- Surface resistivity values in the recommended range for Dissipative ESD packaging materials as defined by ANSI/ESD S541-2008
- UL Approved;Meets requirements of MIL-STD-202G, Method 215K
- Service temperature of -94 to 212° F (-70 to 100° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling
- Brand Name
- Brady®
- Color
- White
- Diagram
- Icon 26 (hexagon)
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Label/Media Format
- Roll
- Patent Valid in (Countries)
- USA
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Roll
- 10000
- Recommended Ribbon
- IP-R6002; R6002
- Shape
- Square
- Total Qty per Pack
- 10000 Label(s) / Roll
- Trade Name
- UltraTemp®
- Adhesive Type
- Static Dissipative Permanent Acrylic
- Brady Material Number
- B-719
- Material
- Polyimide
- SAP B-Number
- B-719
- Dimensions
- 0.375 in H x 0.375 in W
- Dimensions 2
- 0.375 in H x 0.375 in W
- Height (mm/cm/m)
- 9.53 mm
- Label/Tape Size (in/ft/yd)
- 0.375 in H x 0.375 in W
- Maximum Service Temperature °F
- 572 °F
- Minimum Service Temperature °F
- -94 °F
- Size - Width (mm)
- 9.53 mm
- Thickness (mm/cm/m)
- 0.084 mm
- Vertical Repeat (mm)
- 12.07 mm
- Width (in/ft/yd)
- 0.375 in
Board ApplicationSMT - Top/Bottom; Static Dissipative; Through Hole - Bottom; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
FinishMatte
IndustryAerospace; Automotive; Electronics; Manufacturing
Patent Number(s)5958537
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board
Printer Compatibility (Print)BBP12; i7100; i5100
Quantity per Row7
Ribbon SeriesR6000HF
Suggested Ribbon SeriesR4700; R6000 Halogen Free
Total Quantity10000
Adhesive (Y/N)Yes
After ProcessYes, this material will work with this application
Label PropertiesHeat Resistant Labels; Permanent Adhesive Labels
Material PropertiesLow Profile; Static-dissipative
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)9.53 mm W x 9.53 mm H
Height (in/ft/yd)0.375 in
Horizontal Repeat (mm)11.10 mm
Maximum Service Temperature °C300 °C
Minimum Service Temperature °C-70 °C
Sign Size-General0.375 in x 0.375 in
Thickness (in/ft/yd)0.0033 in
Vertical Repeat0.475 in
Web Width (mm/cm/m)81.28 mm
Width (mm/cm/m)9.53 mm
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliant
- Yes
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalNickel
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
