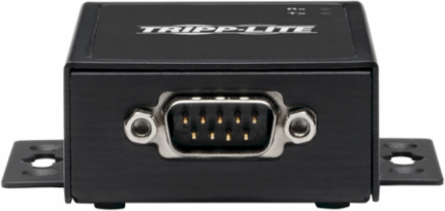

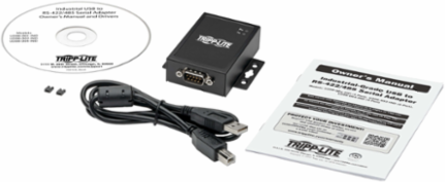

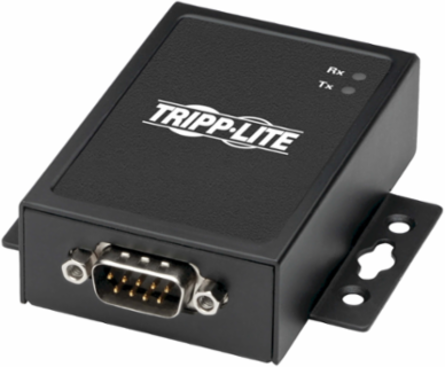

Tripp Lite U208-001-IND 1-Port RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M)
Tripp Lite U208-001-IND 1-Port RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M)
- MPN: U208-001-IND
- UPC: 037332206008
- PPN: TRP-U208-001-IND
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$48.57/ EA
Description
1-Port RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M)
Features
- Auto-detects and -switches RS-422 and RS-485 serial devices

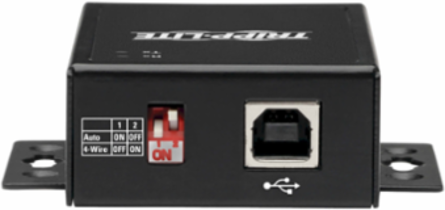

- Independent DIP switch controls provide easy port configuration
- Automatically reassigns COM values to each port to avoid additional configuration
- USB-powered, so no bulky or obtrusive external power supply is required
- Compatible with Windows, Mac and Linux—works with most computers
- 2-year limited warranty
- Connects a Modem or Other 9-Pin Serial Device to Your Computer’s USB-A Port
- Independent DIP Switch for Easy Port Configuration
- COM Retention Feature for Convenient Reassigning of COM Values to Ports
- Rugged All-Metal Housing Designed to Last in Harsh Industrial Applications
- 2-Year Warranty
Specifications
Features & Specifications
- USB Specification
- USB 2.0 (up to 480 Mbps)
- Technology
- Serial (RS422); Serial (RS485); USB
Driver RequiredYes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 1
- Side B - Connector 1
- DB9 (MALE)
- Contact Plating
- Gold
Side A - Connector 1USB B (FEMALE)
Connector PlatingNickel
Physical
- Color
- Black
- Unit Dimensions (hwd / in.)
- 0.9 x 2.8 x 3.0
- Unit Weight (lbs.)
- 0.30
Material of ConstructionSteel (SGCC)
Unit Packaging TypeBox
User Interface, Alerts & Controls

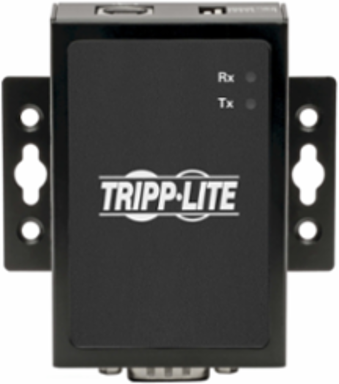

- LED Indicators
- Green (Serial Data Received), Yellow (Serial Data Sent)
Input
- Bus Powered
- Yes
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 4.5
Storage Temperature Range14 to 131 F ( -10 to 55 C)
BTUs15.4 BTU/Hr
Overview
- UPC Code
- 037332206008
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
