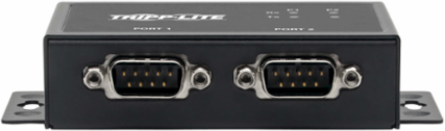

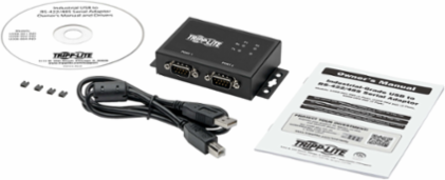

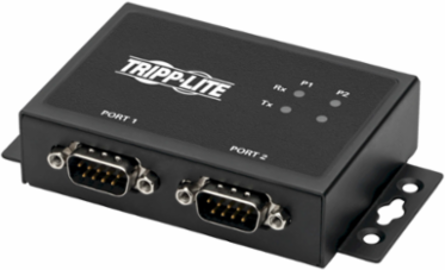

Tripp Lite U208-002-IND 2-Port USB to Serial FTDI Adapter, COM Retention, 0.4 lbs, USB B to DB9 F/M
Tripp Lite U208-002-IND 2-Port USB to Serial FTDI Adapter, COM Retention, 0.4 lbs, USB B to DB9 F/M
- MPN: U208-002-IND
- UPC: 037332205995
- PPN: TRP-U208-002-IND
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$138.77/ EA
Description
2-Port USB to Serial FTDI Adapter, COM Retention, 0.4 lbs, USB B to DB9 F/M
Features
- Auto-detects and -switches RS-422 and RS-485 serial devices

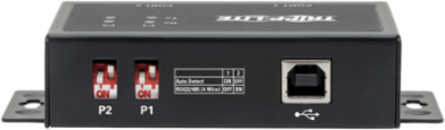

- Independent DIP switch controls provide easy port configuration
- Automatically reassigns COM values to each port to avoid additional configuration
- USB-powered, so no bulky or obtrusive external power supply is required
- Compatible with Windows, Mac and Linux—works with most computers
- 2-year limited warranty
- Connects Up to Two 9-Pin Serial Devices to Your Computer, Laptop or Tablet’s USB-A Port
- Independent DIP Switches for Easy Port Configuration
- COM Retention Feature for Convenient Reassigning of COM Values to Ports
- Rugged All-Metal Housing Designed to Last in Harsh Industrial Applications
- 2-Year Warranty
Specifications
Features & Specifications
- USB Specification
- USB 2.0 (up to 480 Mbps)
- Technology
- Serial (RS422); Serial (RS485); USB
Driver RequiredYes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 2
- Side B - Connector 1
- (2) DB9 (MALE)
- Contact Plating
- Gold
Side A - Connector 1USB B (FEMALE)
Connector PlatingNickel
Physical
- Color
- Black
- Unit Dimensions (hwd / in.)
- 0.9 x 4.2 x 1.7
- Unit Weight (lbs.)
- 0.40
Material of ConstructionSteel (SGCC)
Unit Packaging TypeBox
User Interface, Alerts & Controls

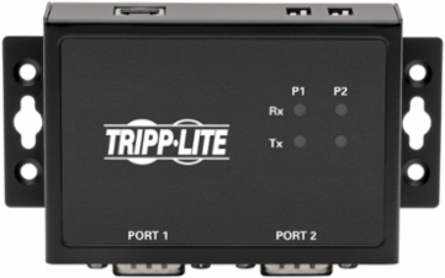

- LED Indicators
- Green (Serial Data Received), Yellow (Serial Data Sent)
Input
- Bus Powered
- Yes
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 4.5
Storage Temperature Range14 to 131 F ( -10 to 55 C)
BTUs15.4 BTU/Hr
Overview
- UPC Code
- 037332205995
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
