Tripp Lite N784H01SCMM Hardened Copper to Fiber Media Converter, 10/100 Mbps, RJ45/SC Multimode, -10 to 60C, 2 km, TAA
- MPN: N784H01SCMM
- UPC: 037332267016
- PPN: TRP-N784-H01-SCMM
CAD
$305.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

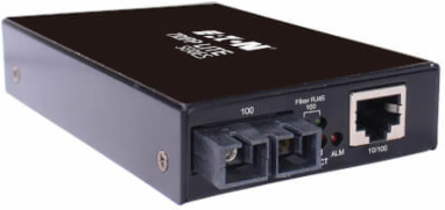

Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/SC Multimode, -10° to 60°C, 2 km (1.2 mi.), TAA
Features
- L-shaped bracket
- Rubber foot
- SC connector cap
- External power supply with NEMA 1-15P plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC 1.5A)
- DIN rail kit
- Wall-mounting hardware
- Quick Start Guide
Documentation & Downloads
Specifications
Dimensions
- Network Ports
- RJ45 (FEMALE); SC (FEMALE)
- Side B - Connector 1
- SC DUPLEX (FEMALE)
- Unit Dimensions
- 0.920 x 2.910 x 4.300
- AC Power Adapter Plug
- NEMA 1-15P North America
- DC Barrel Plug
- OD: 5.5 x 2.5 x 11mm, Positive Pin, Negative Sleeve
Side A - Connector 1RJ45 (FEMALE)
Optical PortSC
Unit Weight0.5267
AC Power Adapter Cord Length3.94
Material
- Product Type
- Fiber to Ethernet
- Mode Type
- Multimode
- Housing
- Metal
- LED Indicators

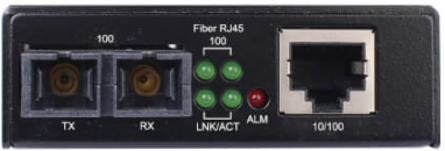

- PWR(Power LED), ALM (LFS function indicator), Fiber - 100 (For Ethernet speed 100Mbps), LNK/ACT (Fiber port data transmitting/receiving), RJ45 - 100 (For RJ45 speed 10/100Mbps), LNK/ACT (For Copper port data transmitting/receiving)
TechnologyCat5/5e; Cat6; Multimode
ColorBlack
Power Source TypeAC Adapter
Compliance
- IEEE Standards Supported
- 802.3; 802.3u
Reference
- Product Warranty Period
- 2-year limited warranty
Performance
- Network Compatibility
- 10 Mbps; 100 Mbps (Fast Ethernet)
- Network Speed Details
- 10 Mbps; 100 Mbps
- Wavelength
- 1310nm
- Power Consumption
- 1.80
- AC Power Adapter Output Specs
- 12V / 1.5A
- Storage Temperature Range
- -40° to 185°F (-40° to 85°C)
Data Transfer Rate10 Mbps; 100 Mbps
Transmission Distance2 km
Wavelength Division MultiplexingYes
AC Power Adapter Input Specs100-240V / 50/60Hz / 0.5A
Operating Temperature Range14° to 140°F (-10° to 60°C)
Relative Humidity5% to 95% RH, Non-Condensing
