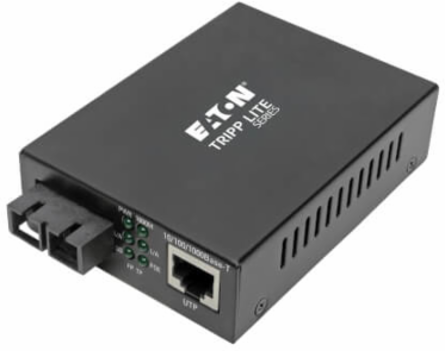

Tripp Lite N785INTPSCMM2 Gigabit Multimode Fiber to Ethernet Media Converter, PoE+, SC, International Power, 1310 nm, 2 km

MPN: N785INTPSCMM2
UPC: 037332273161
PPN: TRP-N785-INT-PSCMM2

$318.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

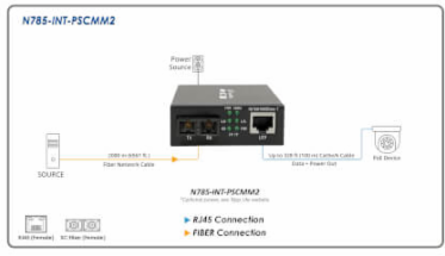

Gigabit Multimode Fiber to Ethernet Media Converter, POE+, International Power Cables, 10/100/1000 SC, 1310 nm, 2 km (1.2 mi.)

Features

External power supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)

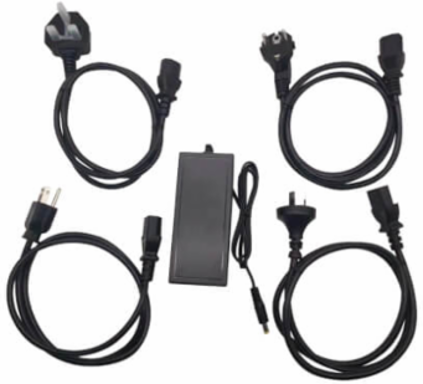

(4) International power cables (North America, Europe, U.K., Australia)

Documentation & Downloads

Specifications

Dimensions

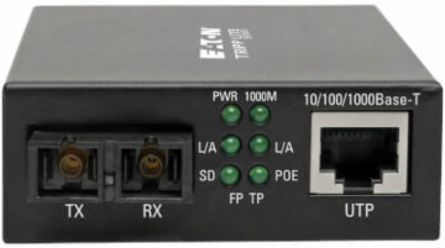

Host Connector	SC DUPLEX (FEMALE)
Optical Port	SC
AC Power Adapter Plug	AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 5-15P North America

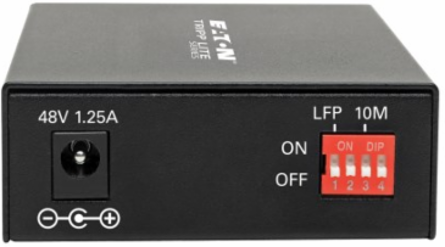

AC Power Adapter Output Specs	48V / 1.25A
Unit Dimensions	0.980 x 2.760 x 3.740 in

Mode Type	Multimode
Power Source Type	AC Adapter with detachable power cord
AC Power Adapter Input Specs	100-240V / 50/60Hz / 1.5A
AC Power Adapter Cord Length	3.61 ft

Material

Color	Black

Compliance

Product Warranty Period	2-year limited warranty

Reference

Product Type	Multimode Media Converter

Performance

PoE Type	Type 1 PoE (15.4W, IEEE 802.3af); Type 2 PoE+ (30W, IEEE 802.3at)
Wavelength	1310 nm
Working Mode	Full/Half Duplex
Storage Temperature Range	-4° to 158°F (-20° to 70°C)

Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit)
Transmission Distance	2 km
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Relative Humidity	5% to 90% RH, Non-Condensing
