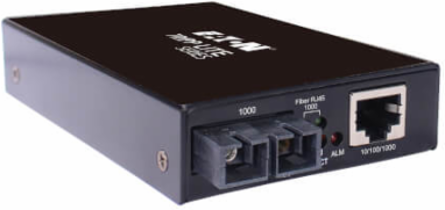

Tripp Lite N785H01SCMM Hardened Gigabit Fiber Media Converter, RJ45/SC Multimode, -10 to 60C, 500 m, TAA
- MPN: N785H01SCMM
- UPC: 037332267047
- PPN: TRP-N785-H01-SCMM
CAD
$374.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hardened Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SC Multimode, -10° to 60°C, 500 m (1640 ft.), TAA
Features
- L-shaped bracket
- Rubber foot
- SC connector cap
- External power supply with NEMA 1-15P plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC 1.5A)
- DIN rail kit
- Wall-mounting hardware
- Quick Start Guide
Documentation & Downloads
Specifications
Dimensions
| Network Ports | RJ45 (FEMALE); SC (FEMALE) |
|---|---|
| Side B - Connector 1 | SC (FEMALE) |
| Unit Dimensions | 0.920 x 2.910 x 4.300 |
| AC Power Adapter Plug | NEMA 1-15P North America |
| DC Barrel Plug | OD: 5.5 x 2.5 x 11mm, Positive Pin, Negative Sleeve |
| Side A - Connector 1 | RJ45 (FEMALE) |
|---|---|
| Optical Port | SC |
| Unit Weight | 0.5267 |
| AC Power Adapter Cord Length | 3.94 |
Material
| Product Type | Fiber to Ethernet |
|---|---|
| Mode Type | Multimode |
| Housing | Metal |

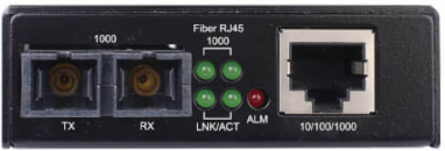

| LED Indicators | PWR (Power), ALM (LFS function indicator), Fiber - 1000 (For Ethernet speed 1000Mbps), LNK/ACT (For Fiber port data transmitting/receiving), RJ45 - 1000 (For RJ45 speed 1000Mbps), LNK/ACT (For Copper port data transmitting/receiving) |
| Technology | Cat5/5e; Cat6; Multimode |
|---|---|
| Color | Black |
| Power Source Type | AC Adapter |
Compliance
| IEEE Standards Supported | 802.3; 802.3ab; 802.3u; 802.3z |
|---|
Reference
| Product Warranty Period | 2-year limited warranty |
|---|
Performance
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit) |
|---|---|
| Network Speed Details | 10 Mbps; 100 Mbps; 1000 Mbps |
| Wavelength | 850nm |
| Power Consumption | 1.80 |
| AC Power Adapter Output Specs | 12V / 1.5A |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| Data Transfer Rate | 1 Gbps; 10 Mbps; 100 Mbps |
|---|---|
| Transmission Distance | 500 m |
| Wavelength Division Multiplexing | Yes |
| AC Power Adapter Input Specs | 100-240V / 50/60Hz / 0.5A |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Relative Humidity | 5% to 95% RH, Non-Condensing |
