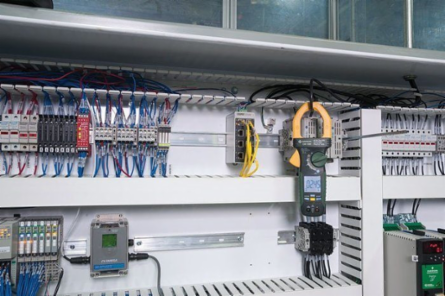

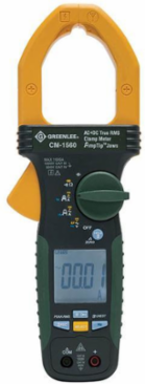

Greenlee CM-1560-C 1000 AMP True RMS Clamp Meter, CAT III 1000V, CAT IV 600V, 2 Inch Jaw Opening
- MPN: CM-1560-C
- UPC: 783310022190
- PPN: GRN-CM-1560-C
- UNSPSC: 41113630
CAD
$856.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1000 AMP True RMS Clamp Meter, CAT III 1000V, CAT IV 600V, 2 Inch Jaw Opening
Features
- CM-1560 Clamp meter with Certificate of Calibration
- Measures AC+DC current
- AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
- Flashlight inside clamp jaw for easier work in dark locations
- Backlight & relative mode for added versatility
Specifications
Key Specifications
| Country of Origin | Taiwan |
|---|---|
| Display | LCD, 6000 Count |
| Includes | (2) 1.5V AA batteries, test leads, carrying case |
| Measurement Category | CAT III 1000V, CAT IV 600V |
| Resistance Measurement | 600, 6k, 60k Ohms |
| True Power | AC+DC True RMS |
| Amperage Measurement | 60, 600, 1000 Amps AC+DC |
|---|---|
| Frequency Rating | Voltage - 50/60 Hz. Current - 40 to 400 Hz |
| Jaw Opening | 2.0'' (51 mm) |
| Replacement Part | TSG-3 test leads, TC-30 carrying case |
| Standard | CAT IV, C/US UL Listed, CE |
| Voltage Measurement | 600, 1000 Volts AC/DC |
