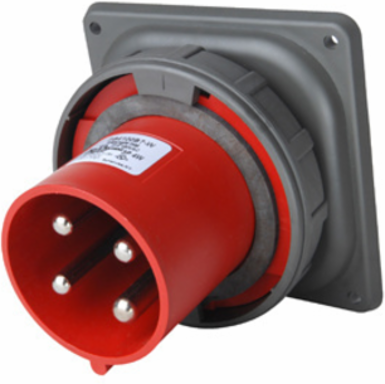

Pass & Seymour PS4100B7W 100A Watertight Pin & Sleeve Inlet, 3 Phase 480V, Gray, 5.71 Inch Length
- MPN: PS4100B7W
- UPC: 785007041118
- PPN: P-S-PS4100B7W
CAD
$1046.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Triple-Pole, 4-Wire, Pin and Sleeve Inlet. 100A, 3/480V.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 5.75 in
- Length
- 5.71 in
- Width
- 5.75 in
- Country of Origin
- United States
- Wire Size
- 2 AWG
- Standard
- UL Listed
- Number of Poles
- 3-Way
Special FeaturesPin & Sleeve devices, Nylon construction for high impact, combination head screws, rating compliance visible
ColorGray
Product LinePass & Seymour
Voltage480.0 V
Amperage100.0 A
Number of Wires4.0
Application SectorCommercial
