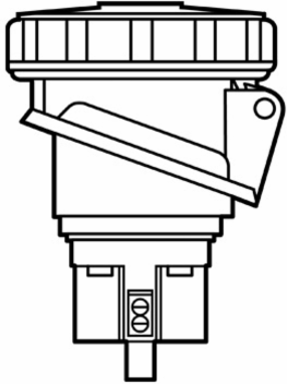

Pass & Seymour PS4100R5W Pin & Sleeve Watertight 100A 3ø 600V Receptacle
Pass & Seymour PS4100R5W Pin & Sleeve Watertight 100A 3ø 600V Receptacle
- MPN: PS4100R5W
- UPC: 785007041125
- PPN: P-S-PS4100R5W
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$783.36/ EA
Description
Triple-Pole, 4-Wire, Pin and Sleeve Receptacle. 100A, 3/600V.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Specifications
Specifications
- Height
- 6.6 in
- Special Features
- Pin & Sleeve devices, Nylon construction for high impact, combination head screws, rating compliance visible
- Width
- 5.2 in
- Product Line
- Pass & Seymour
- Wire Size
- 2 AWG
- Standard
- UL Listed
- Number of Poles
- 3-Way
Length5.6 in
ColorGray
Country of OriginUnited States
Voltage600.0 V
Amperage100.0 A
Number of Wires4.0
Application SectorCommercial
