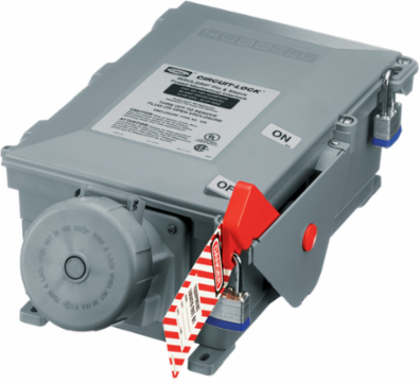

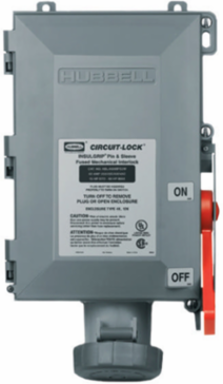

Hubbell Wiring Device-Kellems HBL430MIS2W Heavy Duty IEC Pin & Sleeve Receptacle, 30A 600V AC, 3-Pole, Watertight
- MPN: HBL430MIS2W
- UPC: 783585514871
- PPN: HBL-HBL430MIS2W
- UNSPSC: 39121406
CAD
$2208.71
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
Features
- Spring-loaded receptacle liftcover with gasket

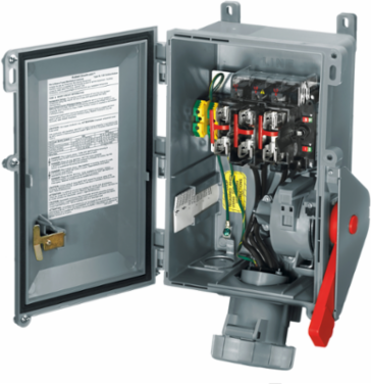

- Removable door for ease of wiring and installation

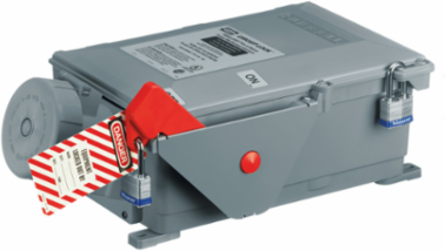

- High visibility red handle can be locked in the OFF position
- Watertight
Specifications
Key Specifications
| Country of Origin | Poland |
|---|---|
| Width | 12.400 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000VAC Min.;Electrical - Max. Working Voltage - 250VDC/600VAC;Electrical - Operations - Mechanical 10,000 cycles minimum;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP66 Suitability;Environmental - Operating Temperatures - Max. Continuous +60°C;Min. Continuous -40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Ratings are part of the external label and molded into the receptacle housing;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Application | High Ampacity Connections |
| NEMA Rating | Non-NEMA |
| Number of Wires | 4-Wire |
| Special Features | Watertight |
| Type | Mechanical Interlock |
| Wattage | 18000 W |
| Voltage Rating Description | 600V AC/250V DC |
| Engineering Drawing 1 Display Text | HBL430MIS2W AutoCAD Drawing |
| General Literature Asset 2 Display Text | Circuit-Lock® Motor Disconnects |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Number Of Wires | 4-Wire |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A12A210 |
| Current Rating | 30 A |
| Series | Unfused |
| BOX SIZE | (in) |
| Each - Pack Description | Each |
| NAICS Code | 335931A104 |
| Current / Amperage Rating | 30 A |
|---|---|
| Industry Standard(s) | UL Listed for US and Canada |
| Amperage Rating | 30 A |
| Environmental Conditions | Watertight |
| Number of Poles | 3-Pole |
| Phase | Single/Three |
| Standard | UL Listed for US and Canada |
| Voltage Rating | 600 VAC/250 VDC |
| Wire Size | #12 AWG to #8 AWG |
| Weight | 16.65 lb. |
| General Literature Asset 1 Display Text | Circuit-Lock® Rounded Sloped Top Motor Disconnects |
| General Literature Asset 3 Display Text | Improved Short Circuit Current Ratings (SCCR) |
| Display Size | Standard Sized Product |
| Number Of Poles | 3-Pole |
| Style | Style 2;Insulgrip |
| Description - Invoice | PS, INS, MECHINT, 3P4W, 30A 600V, W/T |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585514871 |
| Lowest Level UOM | Each |
