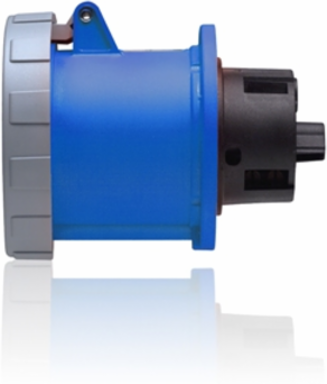

Leviton 460R9W 60 Amp, 250 Volt 3-Phase, 3P, 4W, Outlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - BLUE
- MPN: 460R9W
- PPN: LEV-460R9W
CAD
$461.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
60 Amp, 250 Volt 3-Phase, 3P, 4W, Outlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - BLUE
Documentation & Downloads
Specifications
Standards and Certifications
- Warranty
- 2-Year Limited
- CE Marking
- Per low voltage directives 73/23/EEC, 93/68/EEC
- UL Listed
- 1682 and 1686
CSA CertifiedC22.2 No 182.1
IEC Rating60309-1 and 60309-2
Material Specifications
- Cover Eyelet
- Nickel-Plated Brass
- Arm Spring
- Performance Grade Stainless Steel
- Body Material
- Valox 357
- Mounting Flange
- Valox 357
- Phase and Ground Sleeves
- Brass
Sleeve SpringStainless Steel
Terminal ScrewsSteel
Gasket MaterialChloroprene
Cover with ArmValox 357
Mechanical Specifications
- Minimum Withdrawal Force
- 15lbs
- Crush Test
- 250lbs for 1 min after -25°C for 6 hrs
Impact ResistanceDrop from 30" 8 times after conditioning to -25°C for 6 hrs
Product Features
- Color
- Blue
- Configuration
- North American
Device TypeReceptacle
Country Of OriginPlease Contact Customer Service.
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- Moisture Resistance
- Per UL 1682, immersed for 24 hours in 5cm of 25°C water
Corrosion ResistanceFerrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
IP RatingIP67/IP69K
Electrical Specifications
- Amperage
- 60 A
- Dielectric Voltage
- 2000V for 1 min.
- Temperature Rise
- Max 30C after 50 cycles OL at 150 percent rated current
- Pole
- 3
- Voltage
- 250 VAC
Wire4
Current InterruptingCertified for current interrupting at full rated current
EnduranceUp to 1000 connects and disconnects, under load, at full rated current and voltage
Insulation Resistance500V for 1 min; >= 5MΩ
Phase3-Phase
