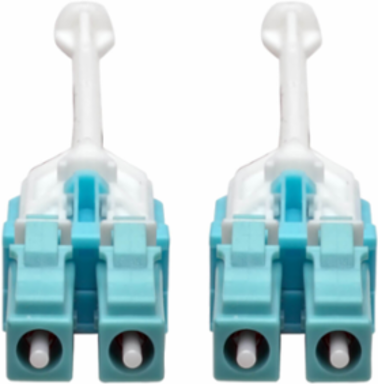

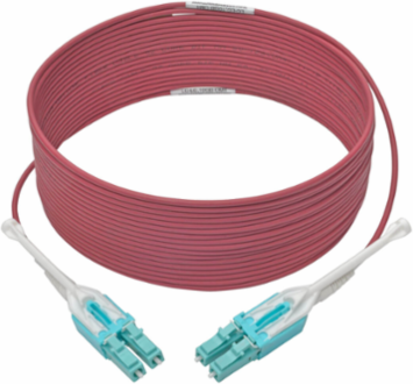

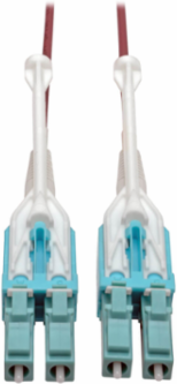

Tripp Lite N821-10M-MG-T 10Gb Duplex Multimode 50/125 OM4 Fiber Patch Cable, 10M, LC/LC, Magenta
- MPN: N821-10M-MG-T
- UPC: 037332201744
- PPN: TRP-N821-10M-MG-T
CAD
$107.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

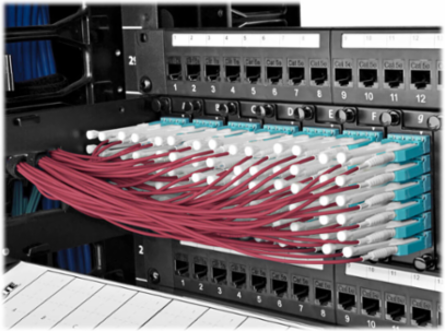

Premium multimode fiber optic cabling transmits clear 10 Gb data and voice signals up to 400 m (@ 850 nm). Recommended for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers.
Features
- Nearly 4x the bandwidth over conventional 62.5 µm multimode fiber
- Push/pull tab connectors install/remove with one hand
- Slim, space-saving uniboot design for neat cable management
- Premium-grade ceramic ferrules designed for fast applications
- Magenta color for easy OM4 identification
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Network Speed | 10 Gbps / 40 Gbps / 100 Gbps |
|---|---|
| Operating Temperature Range | -20 to 60 C (-4 to 140 F) |
| Cable Length | 10 m (33 ft) |
| Fiber Type | Multimode OM4 |
| Clad Diameter | 125 micron |
| Color | Magenta |
| Cable Style | Slim, space-saving uniboot |
| Ferrule Material | Premium-grade ceramic |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
| Maximum Distance | 400 m (@ 850 nm) |
|---|---|
| Storage Temperature Range | -20 to 60 C (-4 to 140 F) |
| Number of Fibers | 2 |
| Core Diameter | 50 micron |
| Connector Type | LC Duplex Male with Push/Pull Tabs |
| Jacket Type | Low-smoke zero-halogen (LSZH) |
| Housing Material | Sturdy plastic |
| Compliance | IEEE 802.3ae, TIA LOMMF |
