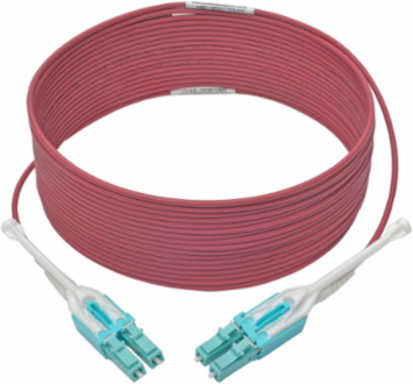

Tripp Lite N821-07M-MG-T 10Gb Duplex Multimode 50/125 OM4 Fiber Patch Cable, 7M (23 ft.), Magenta
- MPN: N821-07M-MG-T
- UPC: 037332201713
- PPN: TRP-N821-07M-MG-T
CAD
$91.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Premium multimode fiber optic cabling transmits clear 10 Gb data and voice signals up to 400 m (@ 850 nm). Recommended for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers.
Features
- Nearly 4x the bandwidth over conventional 62.5 µm multimode fiber
- Push/pull tab connectors install/remove with one hand
- Slim, space-saving uniboot design for neat cable management
- Premium-grade ceramic ferrules designed for fast applications
- Magenta color for easy OM4 identification
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Cable Length | 7 m (23 in.) |
|---|---|
| Maximum Transmission Distance | 400 m (@ 850 nm) |
| Operating Temperature Range | -4 to 140 F (-20 to 60 C) |
| Technology | Multimode |
| Core Diameter | 50 micron |

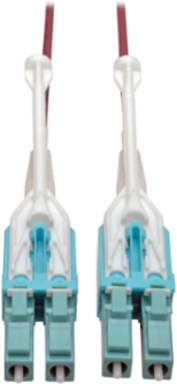

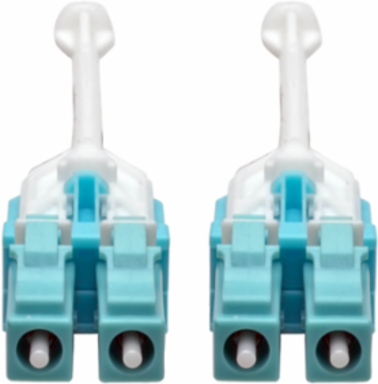

| Side A Connector Type | LC Duplex (Male) with Push/Pull Tab |
| Color | Magenta |
| Ferrules Material | Premium-grade ceramic |
| Data Rate | 10Gbps / 40Gbps / 100Gbps |
|---|---|
| Number of Fibers | 2 |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Optical Mode | OM4 |
| Clad Diameter | 125 micron |
| Side B Connector Type | LC Duplex (Male) with Push/Pull Tab |
| Product Warranty Period | Lifetime limited warranty |
| Housing Material | Plastic |
