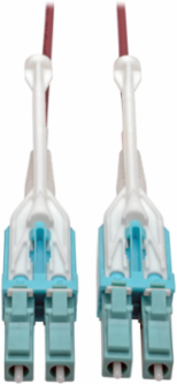

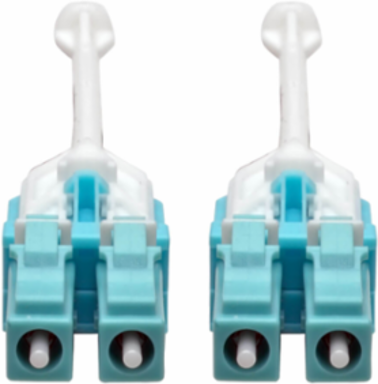

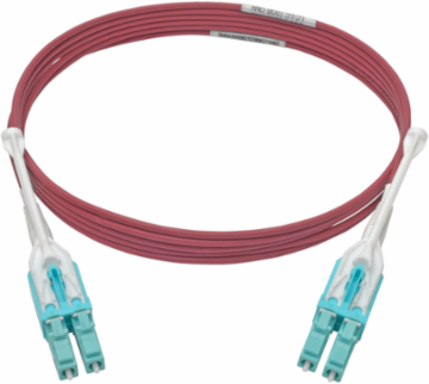

Tripp Lite N821-02M-MG-T 10Gb OM4 Multimode LSZH Fiber Patch Cable, 2M (6.5 ft), LC/LC, Magenta
- MPN: N821-02M-MG-T
- UPC: 037332201676
- PPN: TRP-N821-02M-MG-T
CAD
$67.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Premium multimode fiber optic cabling transmits clear 10 Gb data and voice signals up to 400 m (@ 850 nm). Recommended for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers.
Features
- Nearly 4x the bandwidth over conventional 62.5 µm multimode fiber
- Push/pull tab connectors install/remove with one hand
- Slim, space-saving uniboot design for neat cable management
- Premium-grade ceramic ferrules designed for fast applications
- Magenta color for easy OM4 identification
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Data Rate | 10Gbps |
|---|---|
| Maximum Transmission Distance | 400 m (@ 850 nm) |
| Core Diameter | 50 micron |
| Number of Fibers | 2 |
| Cable Jacket Rating | LSZH (Low-Smoke Zero-Halogen) |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Technology | Multimode |
| Warranty | Lifetime limited warranty |
| Ferrules Material | Premium-grade ceramic |
| Network Speed | 10Gbps / 40Gbps / 100Gbps |
|---|---|
| Cable Length | 78.7 in. (6.6 ft) |
| Clad Diameter | 125 micron |
| Connector Type | LC Duplex, Male, Push/Pull Tabs |
| Operating Temperature Range | -4 to 140 F (-20 to 60 C) |
| Fiber Type | OM4 Multimode 50/125 |
| Optical Mode | OM4 |
| Housing Material | Sturdy plastic |
| Color | Magenta |
