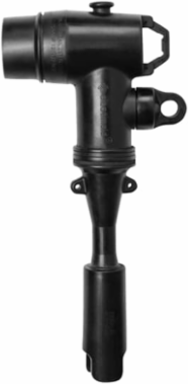

Thomas & Betts 252LRJS-C2095 12/20 24 KV 250A IEC DB JACKET SEAL
- MPN: 252LRJS-C2095
- UPC: 075114373685
- PPN: T-B-252LRJS-C2095
- UNSPSC: 39121421
CAD
$338.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
12/20 24kV, 250 Amp, Deadbreak, Elbow Connector with Test Point, with Jacket Seal, Cable Insulation Diameter - 20.45 mm - 26.92 mm, Copper Compression Lug, Conductor Size 95mm. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
Specifications
Additional Information
- Application
- 12/20 (24) kV
- Color
- Black
- Current Rating
- 250 A
- Environmental Conditions
- Harshonditions °C
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Special Functions
- Robust Stainless Steel Pulling Eye. Dual Grounding Eye Positions. Designed to Remain Fully Operational in Harsh Conditions. Built-In Jacket Seal.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20180611
IncludesElbow Connector Housing with Built-In Jacket Seal, Compression Lug, Probe, Probe Wrench, Bail Assembly, Lubricant, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Elbow Connector with Test Point and Jacket Seal
StandardsIEC 60502-4, CEN 629.1 S2
Voltage Rating15 to 25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
