12/20 24 KV 250A IEC DB SEALING KIT
12/20 24 KV 250A IEC DB SEALING KIT
Thomas & Betts

Thomas & Betts 252LR-C2070-S 12/20 24 KV 250A IEC DB SEALING KIT

  • MPN: 252LR-C2070-S
  • UPC: 075114373609
  • PPN: T-B-252LR-C2070-S
  • UNSPSC: 39121421

CAD

$328.95

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

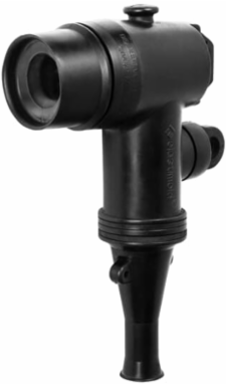

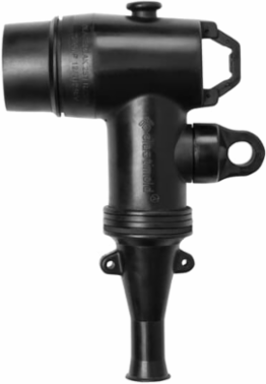

12/20 24kV, 250 Amp, Deadbreak, Elbow Connector with Test Point, with Sealing Kit, Cable Insulation Diameter - 20.45 mm - 26.92 mm, Copper Compression Lug, Conductor Size 70mm. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide. IEC Standard.

Specifications

Additional Information

Application
12/20 (24) kV
Color
Black
Current Rating
250 A
Environmental Conditions
Harshonditions °C
Insulation Material
Yes, EPDM Rubber
Product Name
ELECTRICAL CONNECTOR,>1000V
Special Functions
Robust Stainless Steel Pulling Eye. Dual Grounding Eye Positions. Designed to Remain Fully Operational in Harsh Conditions.
Temperature Range
-40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20180611
IncludesElbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Lubricant, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Elbow Connector with Test Point
StandardsIEC 60502-4, CEN 629.1 S2
Voltage Rating15 to 25 kV

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
