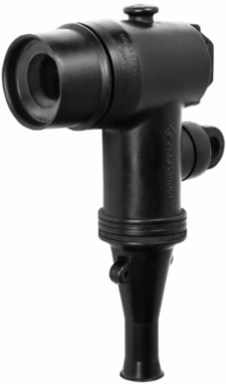

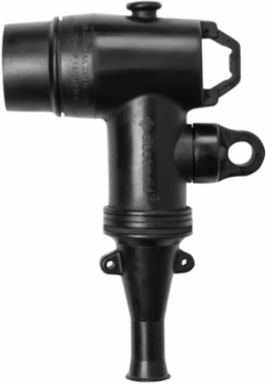

Thomas & Betts 252LR-B2035 12/20 24 KV 250A IEC DB NO SEALING

MPN: 252LR-B2035
UPC: 075114373555
PPN: T-B-252LR-B2035
UNSPSC: 39121421

$275.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

12/20 24kV, 250 Amp, Deadbreak, Elbow Connector with Test Point, No Sealing Kit, Cable Insulation Diameter - 16.13 mm - 22.90 mm, Copper Compression Lug, Conductor Size 35mm. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide. IEC Standard.

Specifications

Additional Information

Application	12/20 (24) kV
Color	Black
Current Rating	250 A
Environmental Conditions	Harshonditions °C
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Special Functions	Robust Stainless Steel Pulling Eye. Dual Grounding Eye Positions. Designed to Remain Fully Operational in Harsh Conditions.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20180611
Includes	Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Lubricant, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
Material	Housing - EPDM Rubber
Product Type	Deadbreak Elbow Connector with Test Point
Standards	IEC 60502-4, CEN 629.1 S2
Voltage Rating	15 to 25 kV
