12/20 24 KV 250A IEC DB NOSEAL 95MM
12/20 24 KV 250A IEC DB NOSEAL 95MM
Thomas & Betts

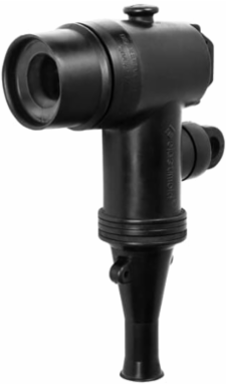

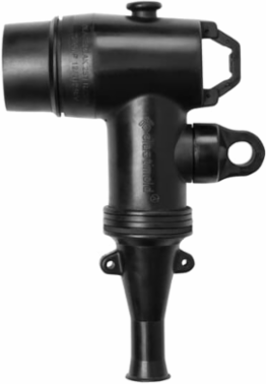

Thomas & Betts 252LR-C2095 12/20 24 KV 250A IEC DB NOSEAL 95MM

  • MPN: 252LR-C2095
  • UPC: 075114373616
  • PPN: T-B-252LR-C2095
  • UNSPSC: 39121421

CAD

$328.10

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

12/20 24kV, 250 Amp, Deadbreak, Elbow Connector with Test Point, No Sealing Kit, Cable Insulation Diameter - 20.45 mm - 26.92 mm, Copper Compression Lug, Conductor Size 95mm. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide. IEC Standard.

Specifications

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach

Additional Information

Application
12/20 (24) kV
Color
Black
Current Rating
250 A
Environmental Conditions
Harshonditions °C
Insulation Material
Yes, EPDM Rubber
Product Name
ELECTRICAL CONNECTOR,>1000V
Special Functions
Robust Stainless Steel Pulling Eye. Dual Grounding Eye Positions. Designed to Remain Fully Operational in Harsh Conditions.
Temperature Range
-40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20180611
IncludesElbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Lubricant, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Elbow Connector with Test Point
StandardsIEC 60502-4, CEN 629.1 S2
Voltage Rating15 to 25 kV

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
