Mersen H300870 High-Speed Semiconductor Fuse 1250/1300 Volt, 50-1800 A, Square Body, Ceramic
Mersen H300870 High-Speed Semiconductor Fuse 1250/1300 Volt, 50-1800 A, Square Body, Ceramic
- MPN: H300870
- UPC: 782001241025
- PPN: FER-H300870
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1430.59/ EA
Description

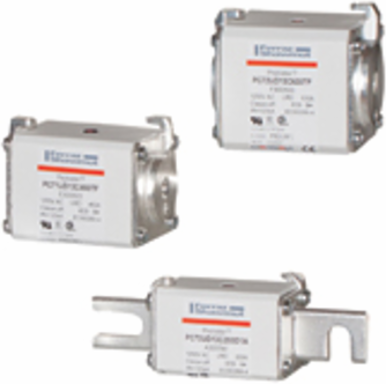

Mersen 1250/1300V PSC fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body fuse-links are available in four different body sizes, each size having seven worldwide acceptable mounting styles. The different mounting styles and body sizes long with a broad range of ampere ratings allow greatest flexibility in equipment design. Mersen PSC fuses have been engineered to provide state-of-the-art protection for SCR's, diodes, thyristors, GTO's and IGBT devices. They have pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for low I2t and high interrupting rating. All contact surfaces are silver-plated and all hardware is non-magnetic. All fuse links are equipped with a low voltage trip-indicator. This trip-indicator can operate a field mountable microswitch which is easily mounted directly onto the fuse even while in service.
Features
- Broad range of ampere ratings in a given body size for design flexibility
- Superior Cycling Ability
- Current-Limiting
- Extremely Fast-Acting
- Very Low I²t
- Choice of mounting styles gives wide choice for equipment design
- IEC 269-4 compliance for worldwide semiconductor applications
- Worldwide Acceptability
Specifications
Product Details
- ROHS Compliant
- Consult Technical Services
- Applications
- Protection of rectifiers, inverters, DC drives, UPS Systems, reduced voltage motor starters, and other equipment.
- UL Certification
- E76491 JFHR2.E76491E76491 JFHR2.E76491
- CE conformity
- Consult Technical Services
- CSA Certification
- 1422-30 012636_0_000
- Ampere Range
- 50 to 1800 A
- Mounting
- Bolted
- I.R. AC
- 100 kA
Body MaterialCeramic
Lead FreeConsult Technical Services
StandardsUL Recognized Component Sizes 70, 71, 72, 73 Tested to IEC 269.4 RoHS Compliant
AC Voltage Range550 - 1300 VAC
Speed / CharacteristicHigh-Speed
Connection Terminal TypeBlade Flat-Type
Body StyleSquare
